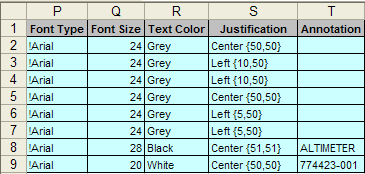

In the eXpresseXpress Model topology export format, the Annotation column contains the text that appears within an annotation Because object abbreviations may contain carriage returns, only a single annotation can be listed in each cell in this column. In the below example excerpt from an exported spreadsheet, there are two annotations listed (in cells T8 and T9).
Unlike the other types of object, all object appearance, placement and size information is automatically exported along with annotations. The following columns will thus always appear when annotations are exported:
