Changing the Effect Tested for a “Test for Effect” Test
Feature Description
Testing for Effect

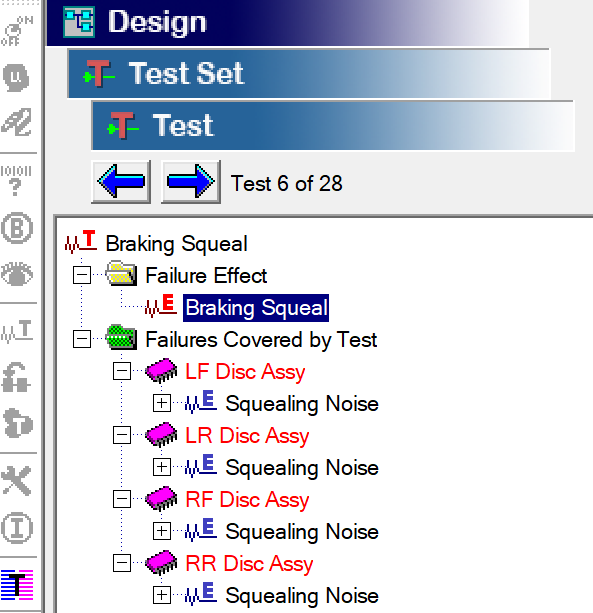

You can change the failure effect that is tested by a “Test for Effect” test. While editing the “Test for Effect”, simply right-click on the Failure Effect in the Explorer Tree and click on “Select Effect” in the pop-up context menu. The following dialog will then appear:

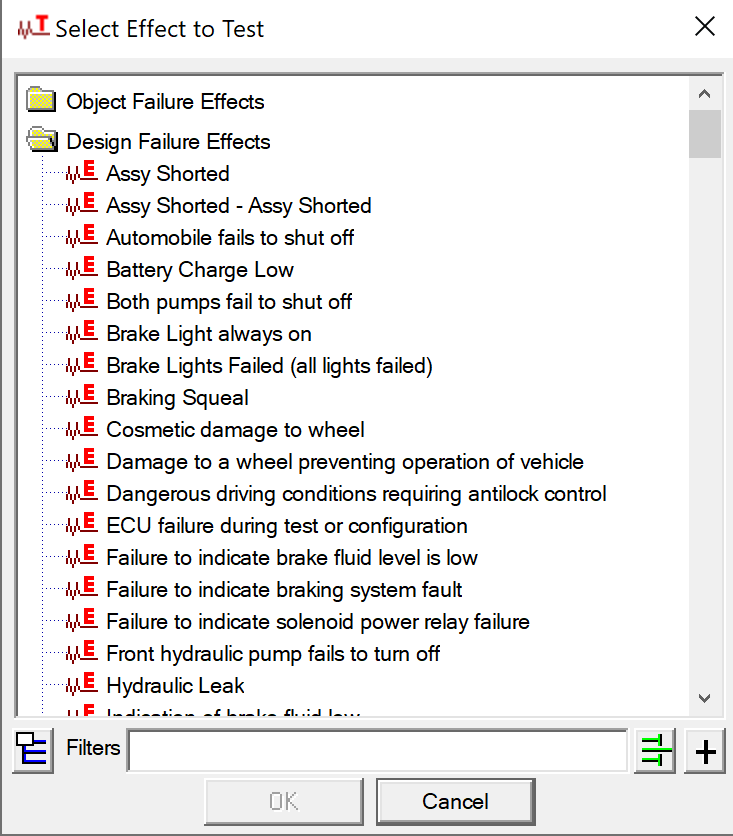

Use this dialog to select the new failure effect to be tested. Notice that object effects and design effects are listed in separate folders (if design effects have been defined for the model, then the “Design Failure Effects” folder will be open by default; if the model contains only object effects, then the “Object Failure Effects” folder will be open.
