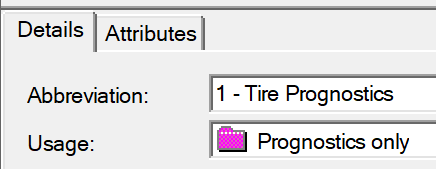

When a test set is marked Prognostics for its usage it requires a prognostic setup in diagnostics as shown below

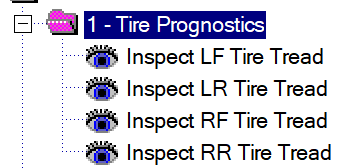

Test Set
Contest panel Selection

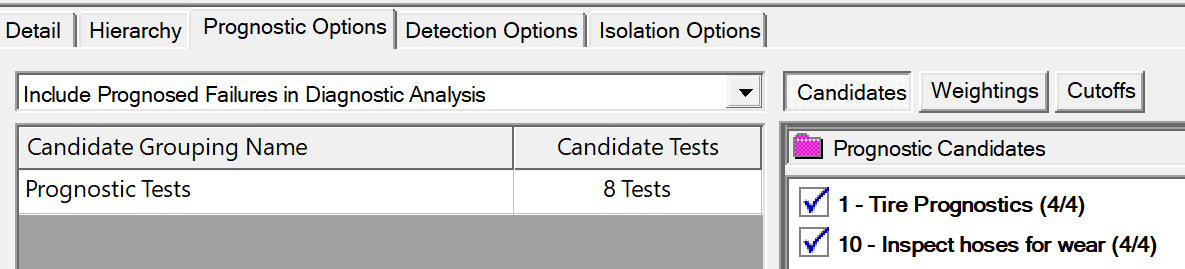

Diagnostics Context Panel Selections to run Prognostics

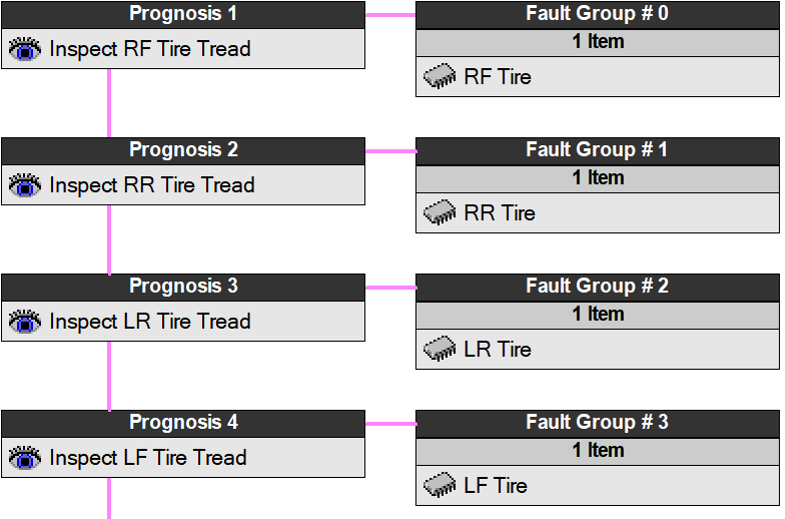

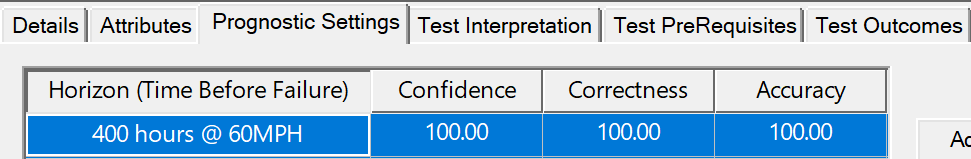

This test set will not show up in either Detection or Isolation test sets selection panels but the Prognostic tests will be in the first column of detected tests in the Flow Diagram if the tests have been selected. Shown below is the flow diagram for the test set shown above. The fault Group items shown are items isolated by the timeouts (400 hours @ 60MPH - 24000 miles) specified in the prognostics setups [Not during Diagnostic Analysis]. These items are to be replaced by prognostics before failure for safety.
