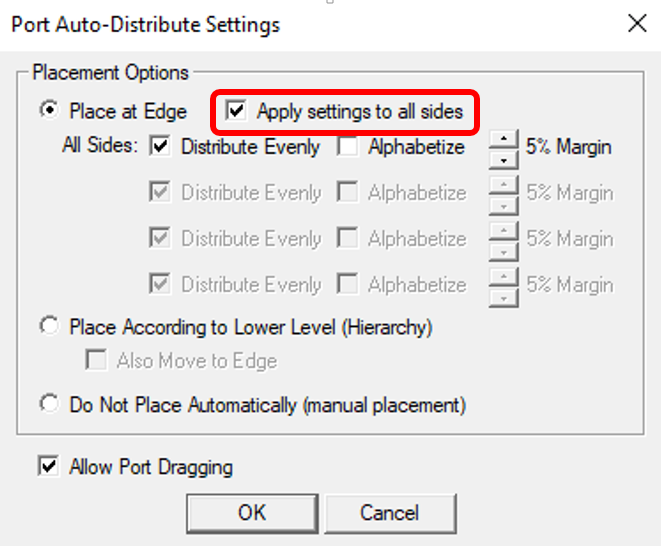

- On the Port Auto-Distribute Settings dialog, you can now specify different settings for each side of an object. By default, the settings apply to all sides (as shown at right). Disable the “Apply settings to all sides” checkbox to define settings per side.
You can now also specify that a “margin” be preserved at the corners of an object, with ports being automatically distributed in the remaining area of the object.
