The Detection Order Report contains metrics that describe the fault detectioncapability of a diagnostic design and its performance under diagnosis. Among the information in this report are common Testability and Reliabilitymetrics that are useful when assessing the capability of a diagnostic design. Several of the metrics that appear in this report are expressed in terms of minimum and maximum fault detection.
| | |
All Detection Tests
Report Content
The information in the Detection Order Report is divided into two sections as shown below. (Summary & Detection Order Table)
Report Options

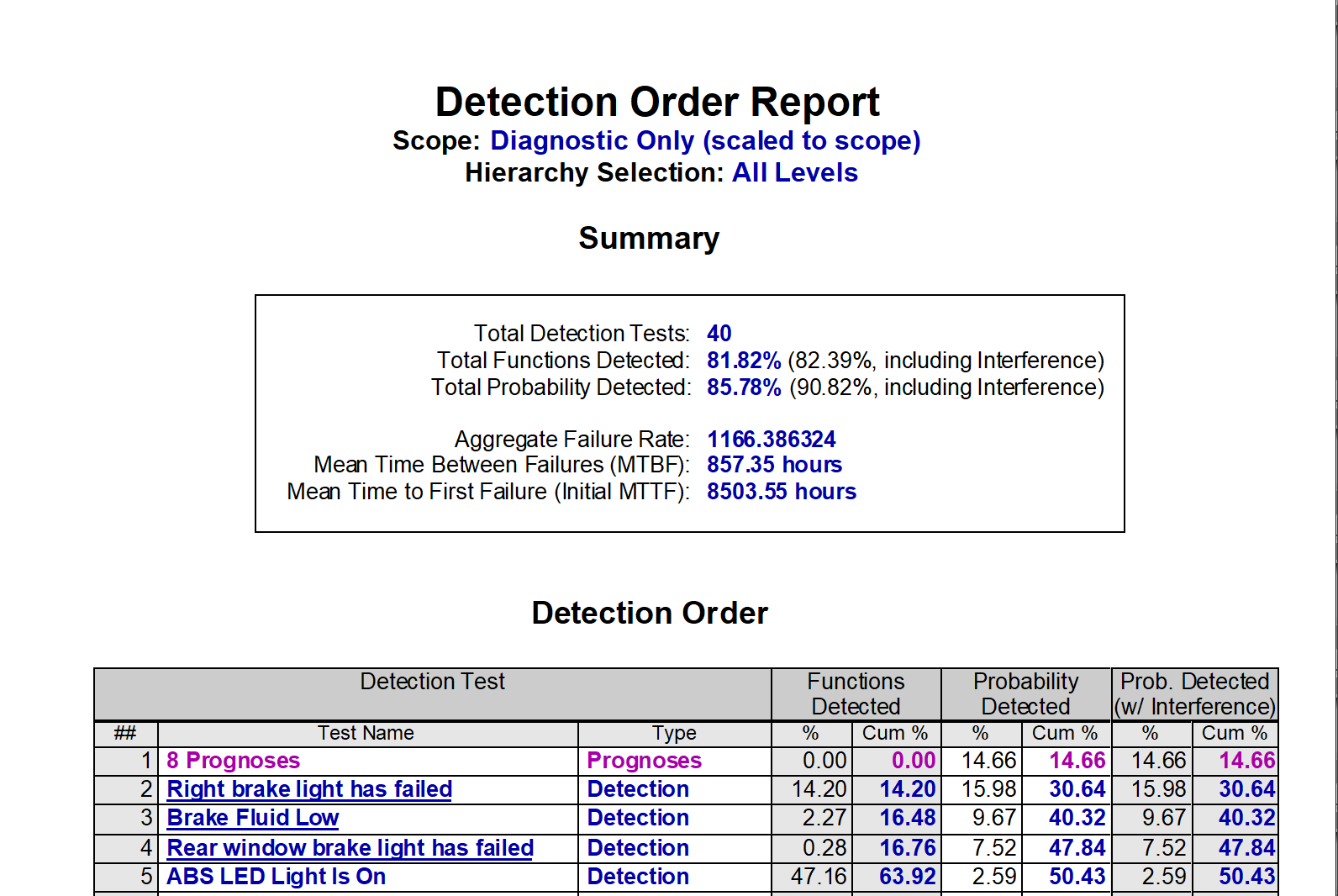

When the Detection Order Report is invoked, the Detection Order options dialog appears, allowing the Analyst to select whether or not the Summary section is to be included in the report. This dialog also allows the Analyst to select the format of the generated report. Note: the following sample report shows only prognostic plus 4 lines of data of the 73 total lines od data
