After running a diagnostic study, an Info dialog can be invoked by right-clicking on the background of the Diagnostic Flow Diagram and selecting “Info…” from the menu that appears. The dialog’s three panels provide useful insight into the contents and history of a calculated diagnostic sequence.

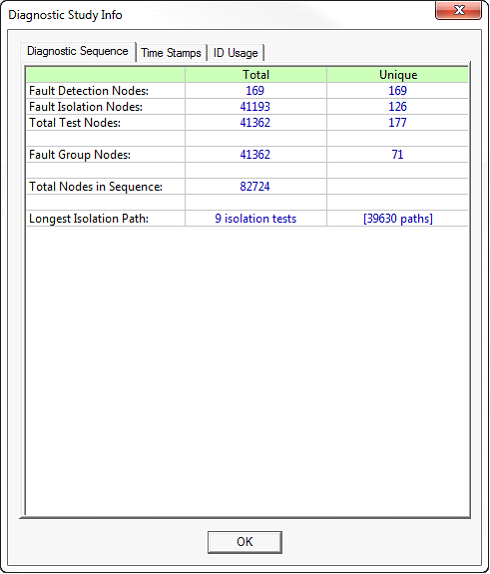

The Diagnostic Sequence panel lists statistics about the calculated test sequence, including the number of unique tests & fault groups, as well as the number of tests in the longest isolation path.
The Time Stamps panel shows how long different stages of the diagnostics took to process.

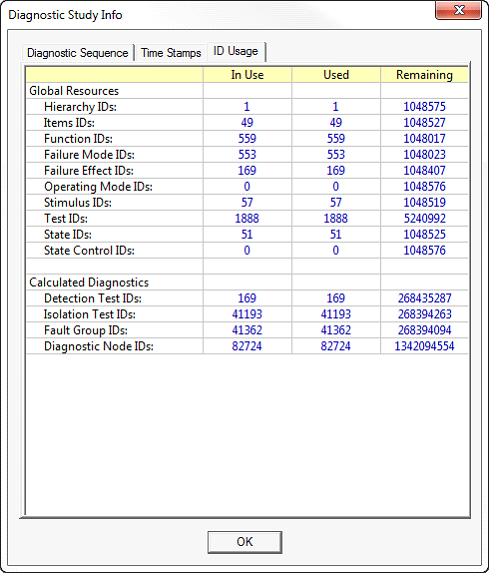

The ID Usage panel shows how many IDs have been used in the various resource tables that are associated with that diagnostic study.
