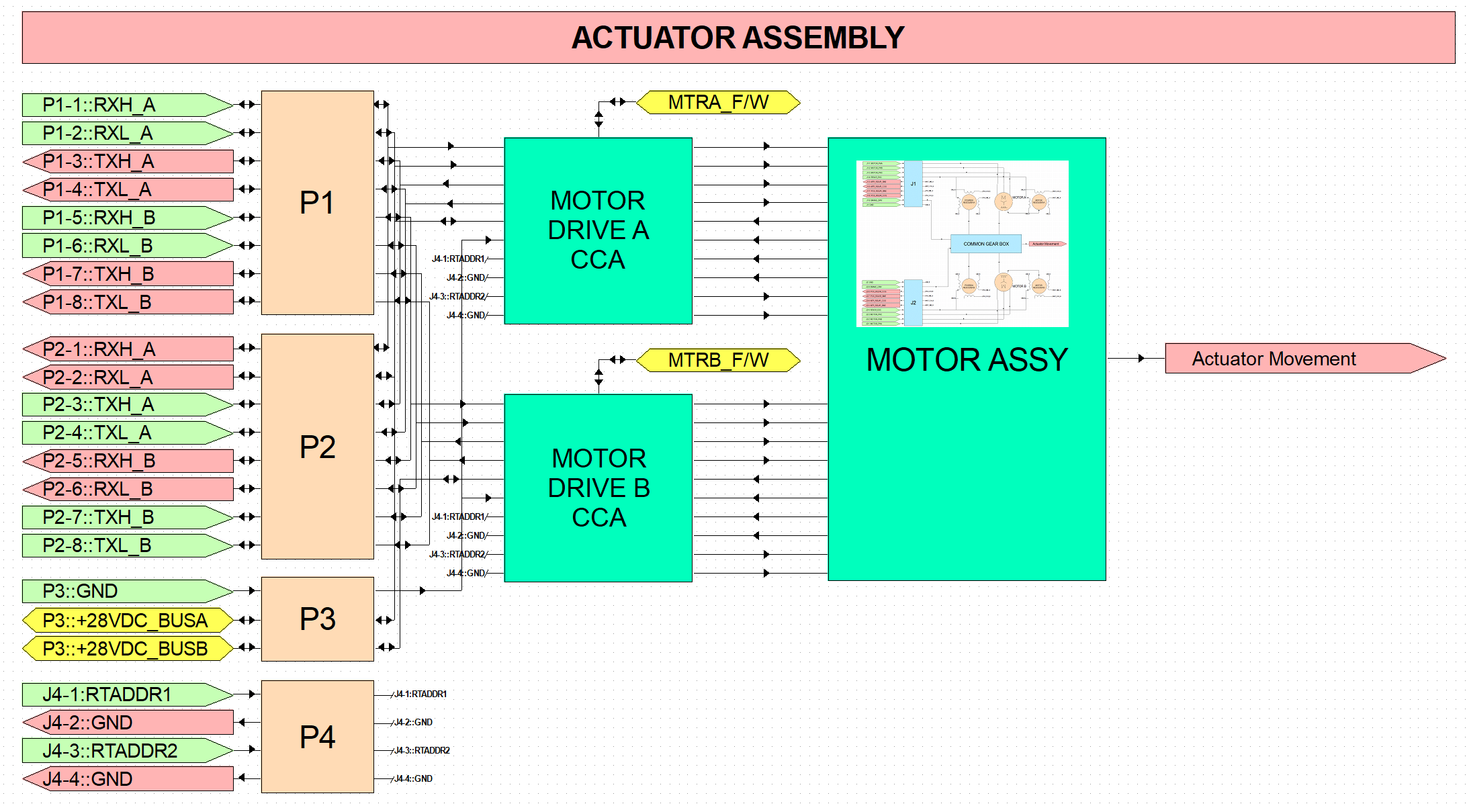

Here we see the Failed Component in the FMECA (Motor Assy) - Notice Many of its its Failure modes are in its Drivers + it has many failure modes in lower level resolvers. (J1 outputs to Motor Drive A

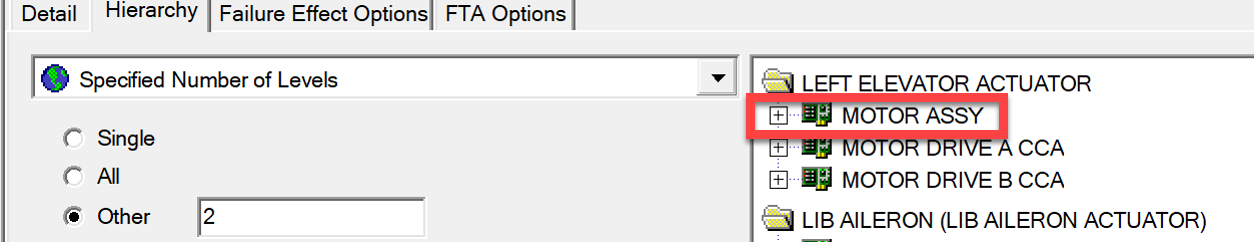

Hierarchical level setup = 2

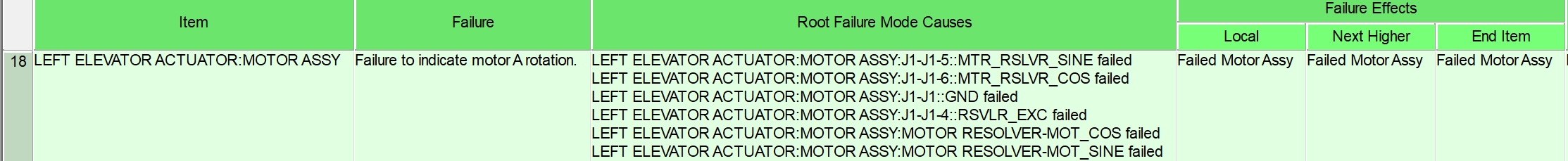

Resulting FMECA for a Failure that causes Failed Motor Assy on the Left Elevator show
