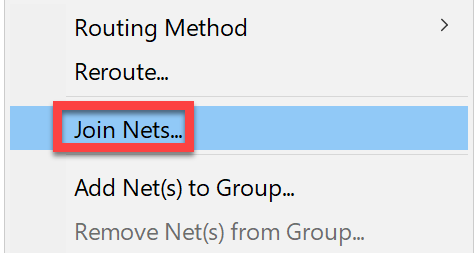

With nets selected (A1 & A2) to be joined, use right-hand mouse buttton to open the "Nets Control" window and select "Join Nets" as shown to the Right,

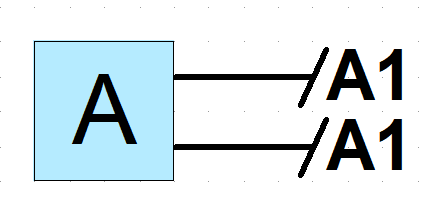

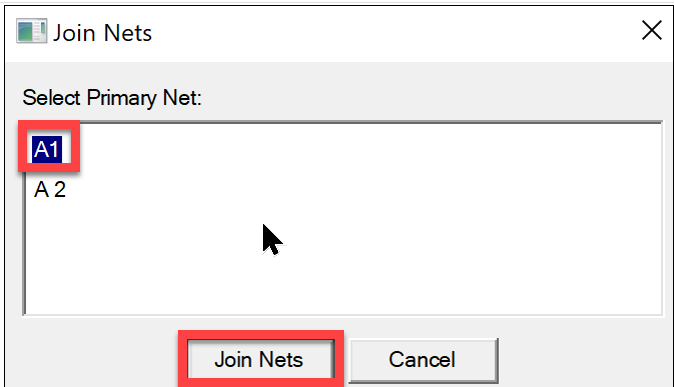

This will open the "Join Nets window", as shown to the right, allowing the Analyst to choose which name to apply to the nets (A1 or A2). Then select "Join Nets" button to join the nets. Nets are now connected and the stubs show the same name

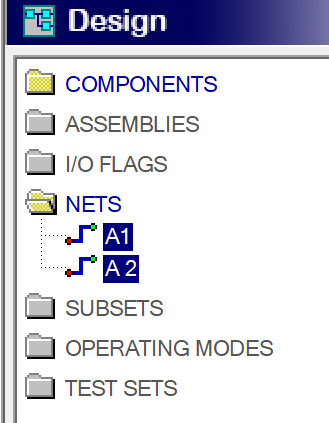

Selecting the nets in the Explorer Tree works eaually well. The right-hand mouse button procedure is the same
Note: Suggested Usage - When copying model segments using "select everything" to duplicate them, the stubbed power and ground nets will be duplicated and have the same names but will not be connected together. The above procedure works well for connecting these net segments together. These unconnected segments can best be found in the explorer tree because they will show with the same name.
