Net Auto Connect Additional Options

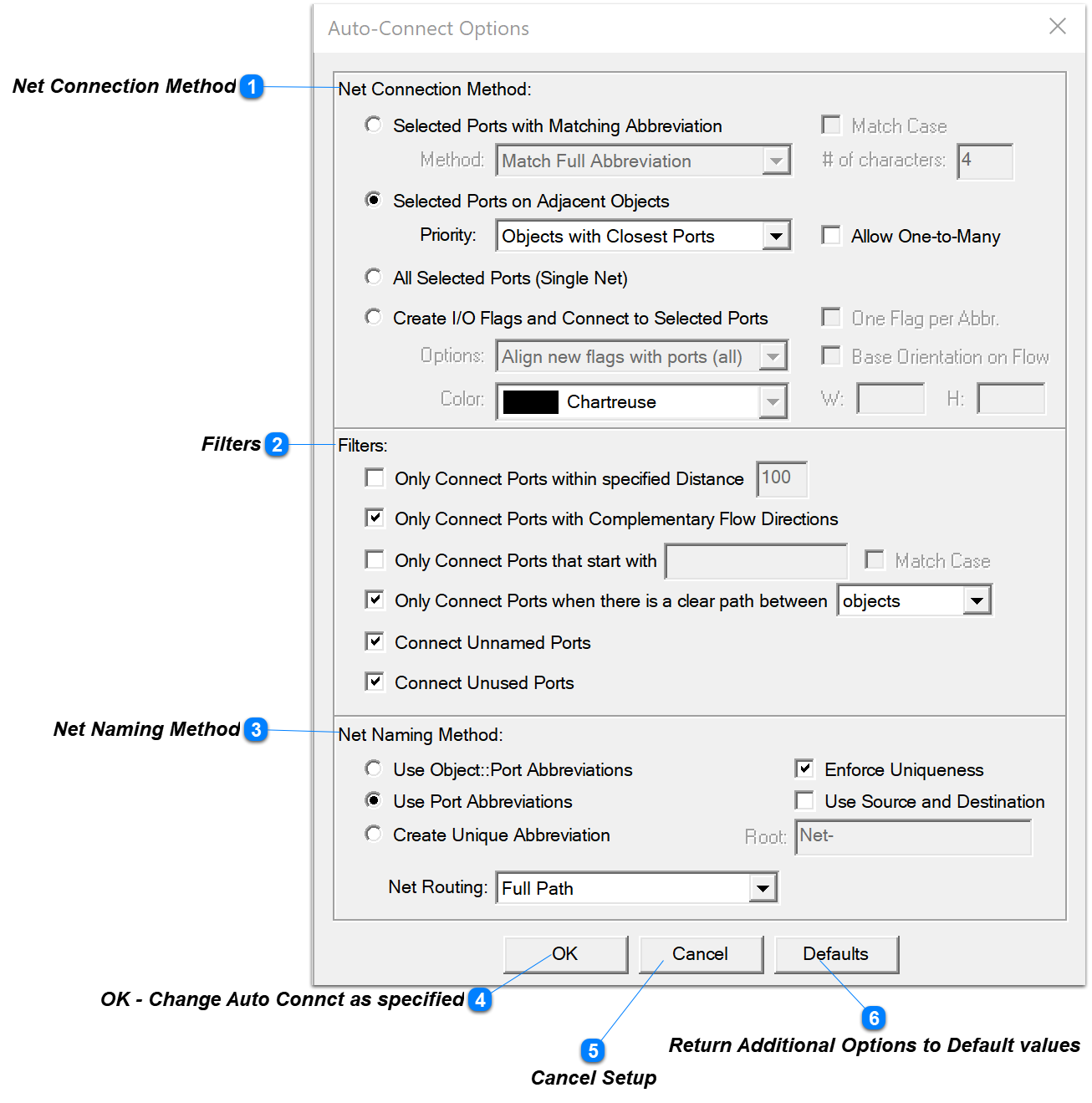

Net Auto Connect Additional Options
1

Net Connection Method

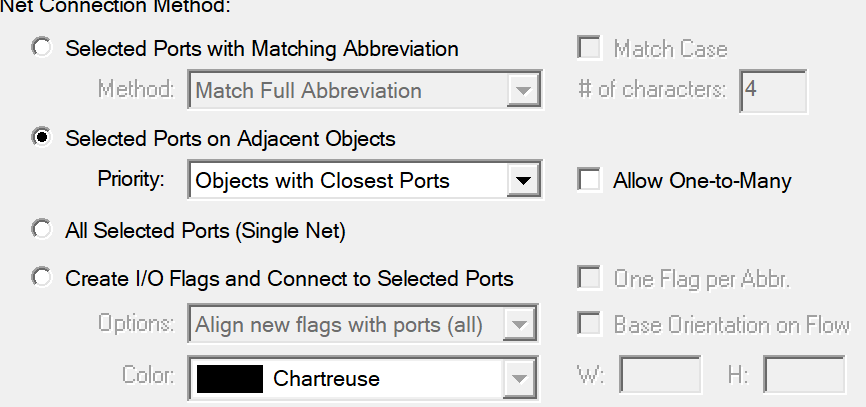

1. Net Connection Method
The 4 checkboxes in Net Connection Method are Mutual Exclusive

Checkbox selection
Options
Selected Ports with Matching Abbreviations
Match full Abbreviations
Match Beginning of Abbr
Match End of Abbreviation
Selected Port On Adjacent Objects
Objects with the Closest Ports
Objects with the most Ports
Top to Bottom, Left to Right
All Selected Points (Single Net
No Options
Create IO Flags and Connect to Selected Ports
Align new flags with ports (All)
Align new flags with ports (L/R)
Group all new Flags at Right
One Flag Per Abbr
Base Orientation on Flow (left/right Orientation of IO Flag)
Color, Size (Setup same Same as all eXpress items)

2

Filters

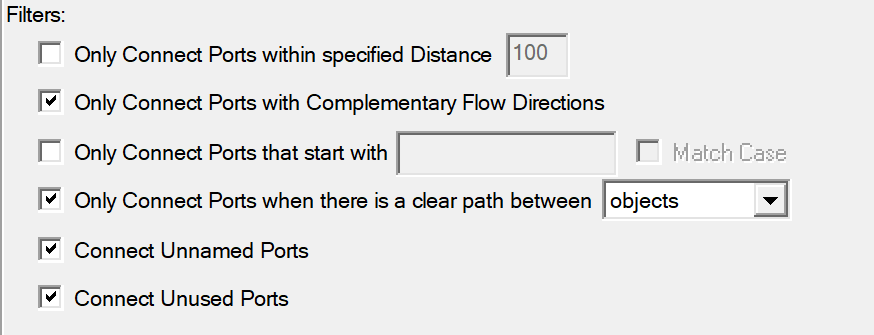

2. Filters
These Checkboxes are not Mutual Exclusive and can all be used together in any combination
These Filters Options are self explanetary to provide maximum capabilty in using Nets Auto Connect.
3

Net Naming Method

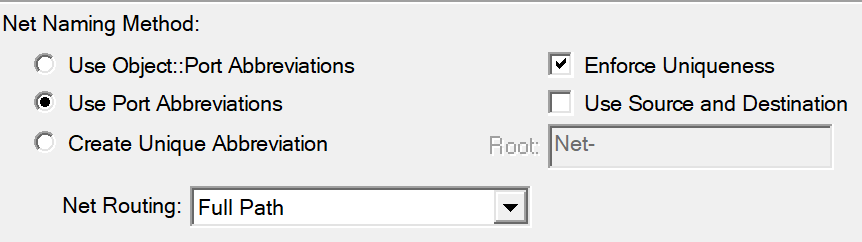

3. Net Naming Method
The 3 checkboxes in Net Naming are Mutual Exclusive
These options are also Self Explanetary for naming Nets. Net Routing Default is Stubs
4

OK - Change Auto Connct as specified

4. OK - Change Auto Connct as specified
Change Auto Connect  Additional Options to those specified above.
5

Cancel Setup

5. Cancel Setup
Cancel Setup (Abort)
6

Return Additional Options to Default values

6. Return Additional Options to Default values
Return Auto Connect Additional Options to Default values
