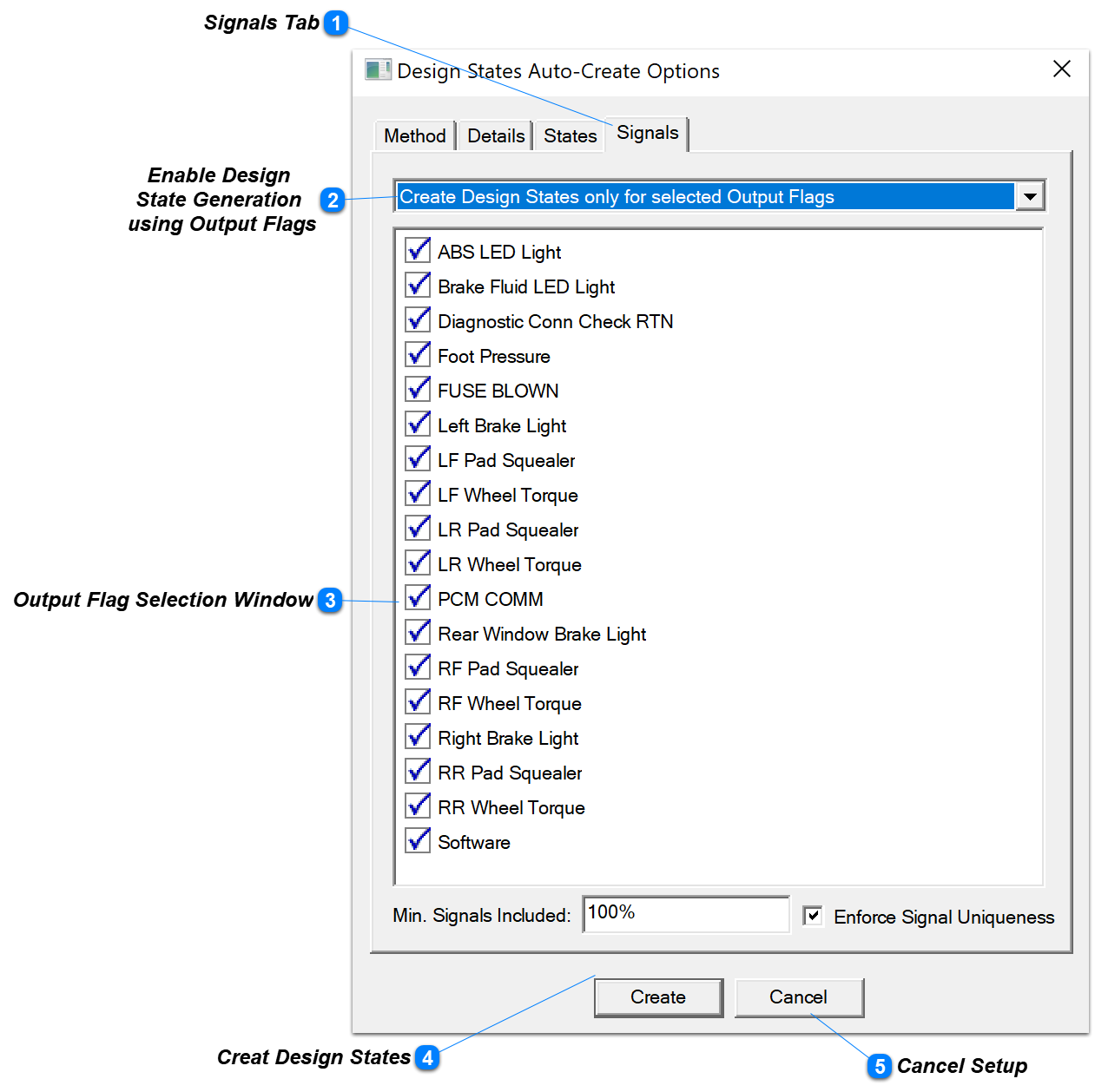

Design States Auto-Create Options Signals window

Design States Auto-Create Options Signals window
1

Signals Tab

1. Signals Tab
To Turn on Signals (Output Flags Selection) Window
2

Enable Design

State Generation

using Output Flags

2. Enable Design State Generation using Output Flags
This will Generate Design States for output Flags whose upstream path includes Object States. Default is "Do Not Consider Signals when Creating Design Flags and selection window is grayed out.
3

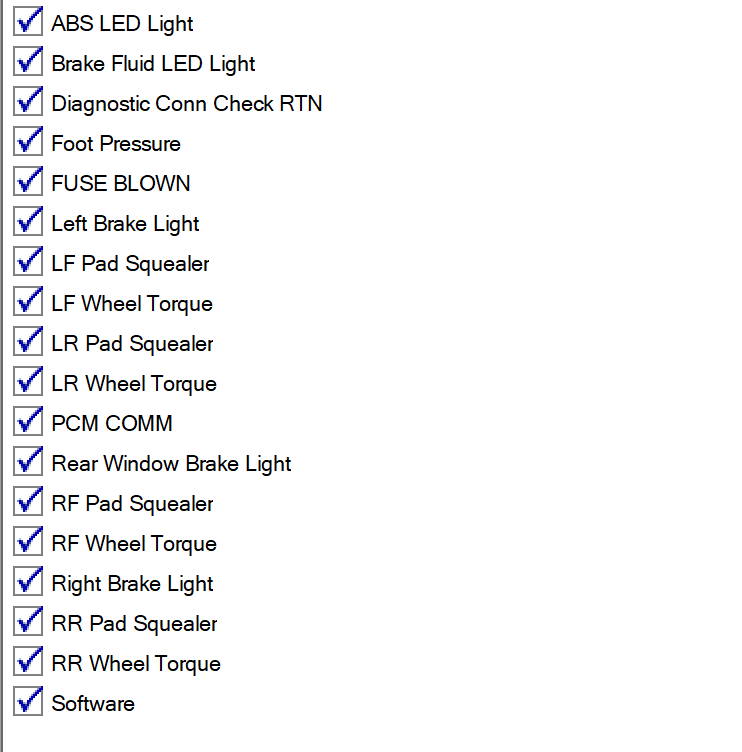

Output Flag Selection Window

3. Output Flag Selection Window
To choose the IO Flags whose upstream path associated with the Object States that the analyst wants as a Design State
4

Creat Design States

4. Creat Design States
Creates the desired Design States
5

Cancel Setup

5. Cancel Setup
Cancel Setup (Abort)

The Signals panel allows design state auto- creation to be constrained to only states that are related to specified I/O flags.
