eXpress Diagnostics provides a large numger of Diagnostic Reports in 3 ouput formats with many options for the Analyst. With Hotlinks choice allows the Analyst to link to the item in the model

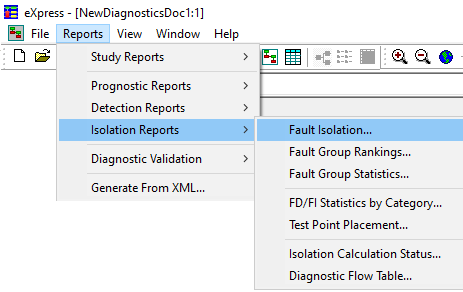

To Select a Fault Isolation Reports in Diagnostics use the Reports toolbar as shown to the Left Following is a description of each sub-category of Fault Isolation Reports shown to the right and it's Options. Select links below to setup a Isolation Report

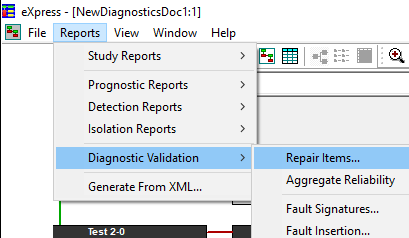

To Select a Diagnostic Validation Reports in Diagnostics use the Reports toolbar as shown to the right. Following is a description of each sub-category of Diagnostic Validation Reports shown to the right and it's Options. Select links below to setup a Validation Report
Many of the metrics that appear in these reports conform with definitions provided in various military and industry Standards, Handbooks and Publications.
