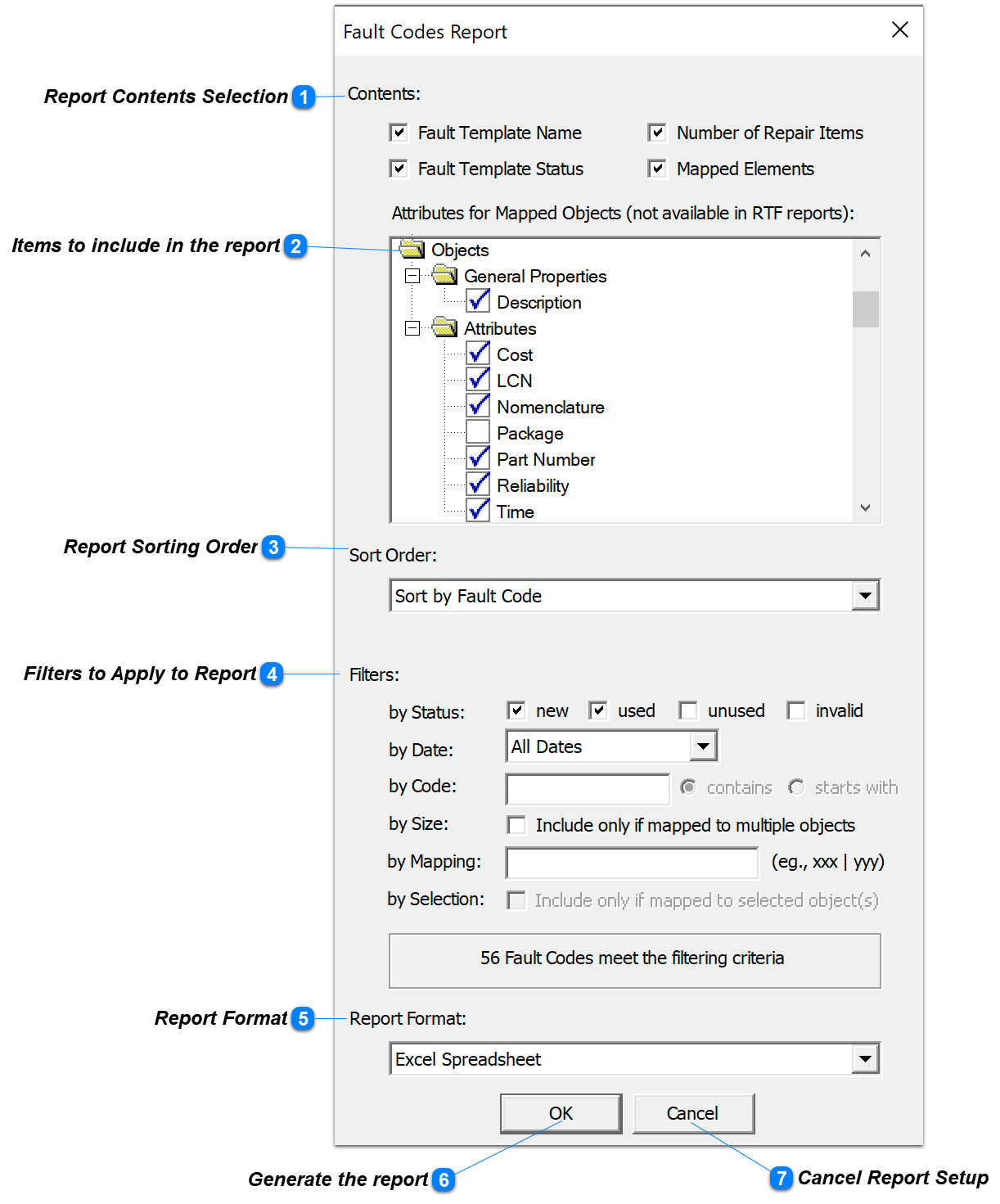

Fault Codes Report Setup - EXCEL

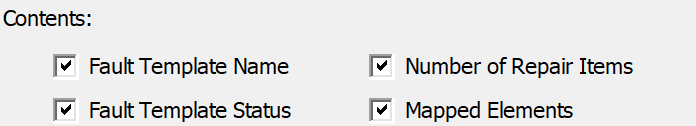

![1](drex_bullet_1_2.png) Report Contents Selection
Select desired Contents to include in report
|
|

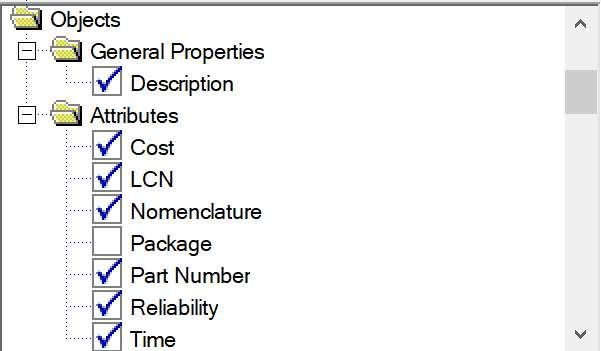

![2](drex_bullet_2_2.png) Items to include in the report
Select Columns to include in the spreadsheet
|
This indentured list will vary with each model due to differences in defined Attributes
|
|
|

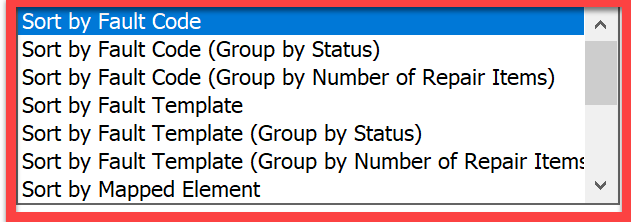

![3](drex_bullet_3_2.png) Report Sorting Order
Select Sort method from Window list
|
|

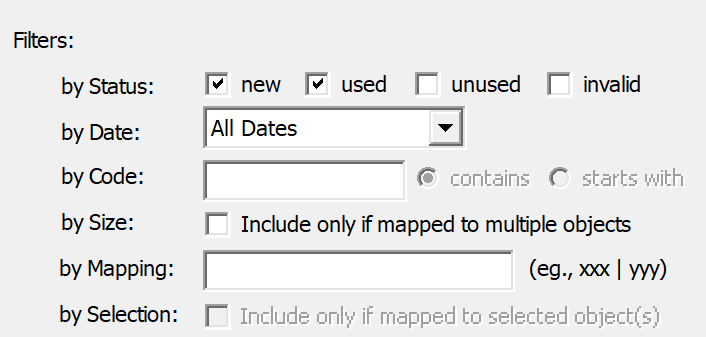

![4](drex_bullet_4_2.png) Filters to Apply to Report
By Status
|
Default is as shown new/used can include unused or invalid fault codes for usage of system being reported on
|
By Date
|
|
By Code
|
Used where fault codes have different prefixes related to mission phases or system usage
|
By Size
|
Size of Ambiguity caused by fault (Can exclude when a fault is mapped to multiple objects)
|
By Mapping
|
|
By Selection
|
|
|
|
![5](drex_bullet_5_2.png) Report Format
Selects RTF, EXCEL or XML
|
|
|
|
![6](drex_bullet_6_2.png) Generate the report
Generate the report
|
|
![7](drex_bullet_7_2.png) Cancel Report Setup
Cancel Setup (Abort)
|
|
