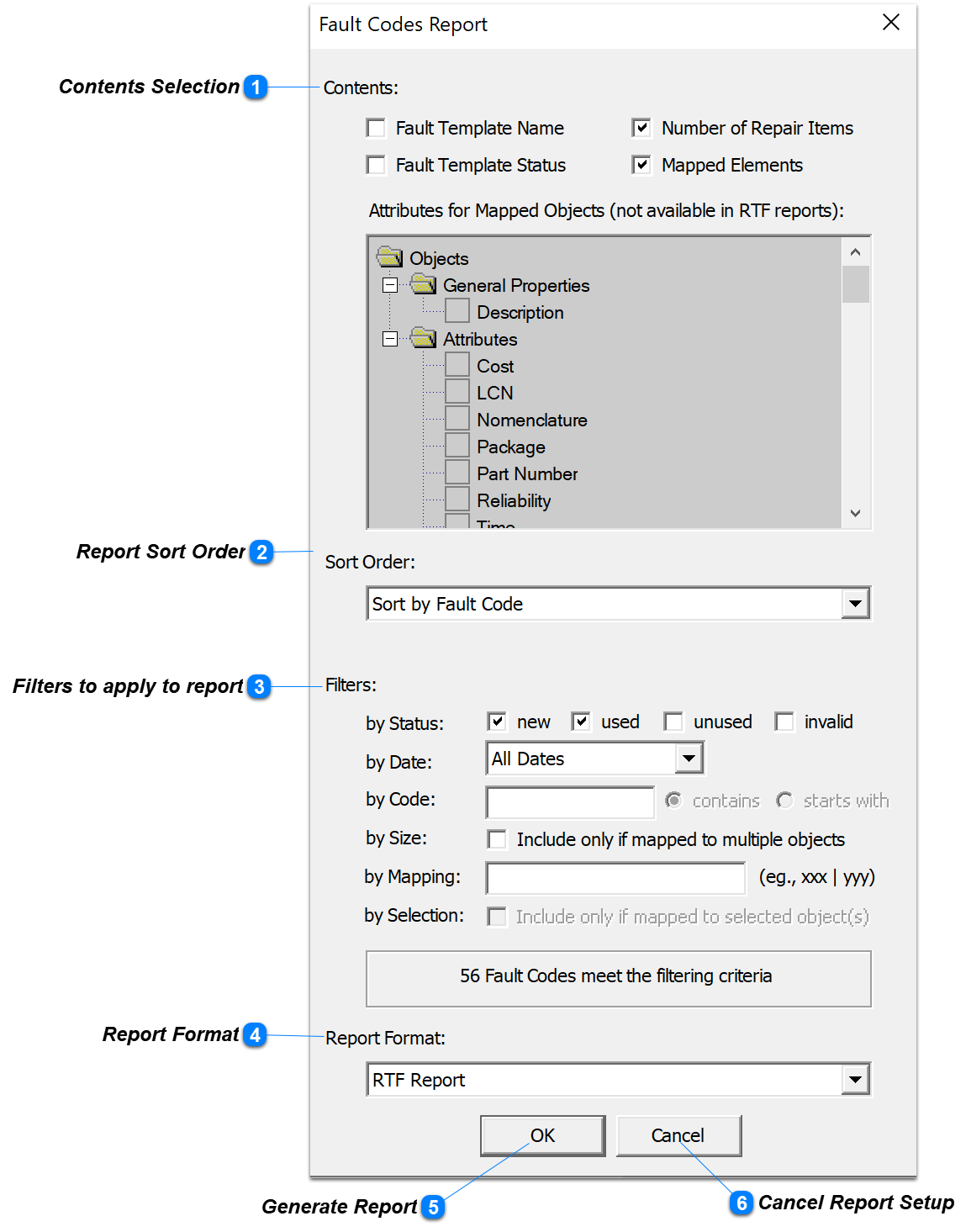

Fault Codes Report Setup - RTF
NOTE: Grayed out area items are not choosable in this format. Select EXCEL or XML format to select these Items.
![1](drex_bullet_1_2.png) Contents Selection
Select desired Contents to include in report
|
|

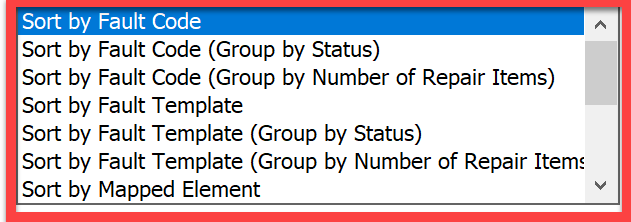

![2](drex_bullet_2_2.png) Report Sort Order
Select Sort method from Window list
|
|

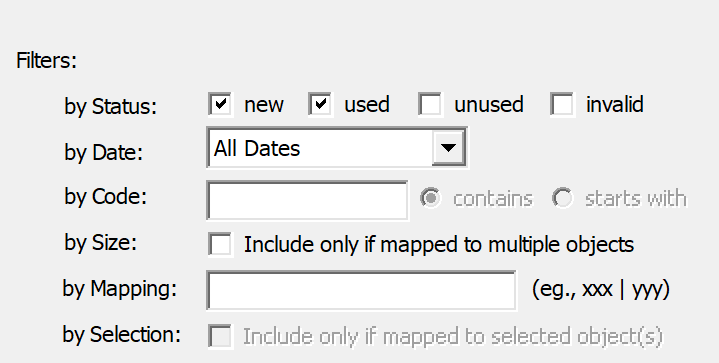

![3](drex_bullet_3_2.png) Filters to apply to report
By Status
|
Default is as shown new/used can include unused or invalid fault codes for usage of system being reported on
|
By Date
|
|
By Code
|
Used where fault codes have different prefixes related to mission phases or system usage
|
By Size
|
Size of Ambiguity caused by fault (Can exclude when a fault is mapped to multiple objects)
|
By Mapping
|
|
By Selection
|
|
|
|
![4](drex_bullet_4_2.png) Report Format
Selects RTF, EXCEL or XML
|
|
|
|
![5](drex_bullet_5_2.png) Generate Report
Generate the report
|
|
![6](drex_bullet_6_2.png) Cancel Report Setup
Cancel Setup (Abort)
|
|
