Interoperability Toolbar

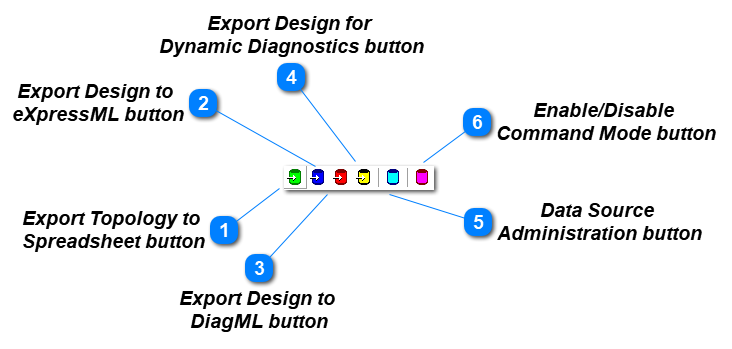

Interoperability Toolbar
1

Export Topology to

Spreadsheet button

1. Export Topology to Spreadsheet button
The "Export Topology to Spreadsheet" will create an Excel Spreadsheet of the model   eXpress Model topology export
2

Export Design to

eXpressML button

2. Export Design to eXpressML button
The Export Design to eXpressML button will export the model design data to an XML file
3

Export Design to

DiagML button

3. Export Design to DiagML button
The Export Design to DiagML button will export the model diagnostics to a XML file
4

Export Design for

Dynamic Diagnostics button

4. Export Design for Dynamic Diagnostics button
The Export Design for Dynamic Diagnostics button will export Dynamic Diagnostics to
5

Data Source

Administration button

5. Data Source Administration button
The Data Source Administration button opens the Data Administgration window
6

Enable/Disable

Command Mode button

6. Enable/Disable Command Mode button
The Enable/Disable Command Mode button Enables or disables IDSS Control of the Model
