Standard FMECA Configurations



Feature Description

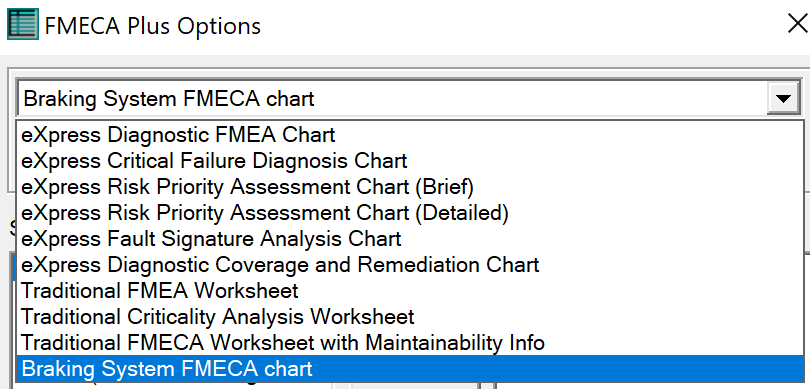

eXpress has the list of 9 Standard FMECA Configurations combinations or the Analyst can prepare a custom FMECA and store the New Configuration as done for the "Braking System FMECAS chart" shown to the right

See eXpress FMECA Plus Columns for full list and description of possible columns (listed in the  eXpress "Not Selected" column that are available)

See Below the 9 Standard Configuration that require no setup

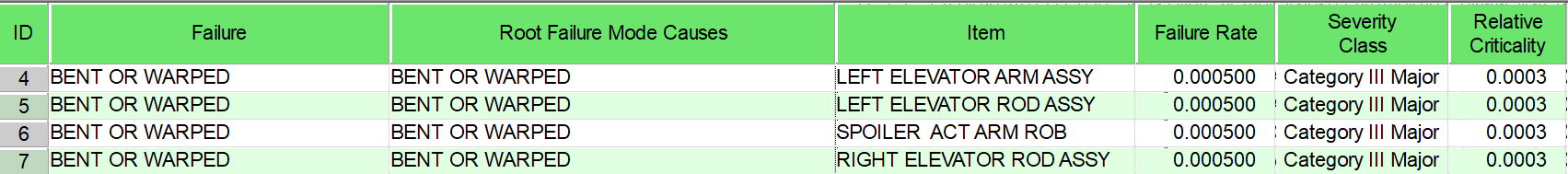

Default FMECA Configuration: "eXpress Diagnostic FMEA Chart"

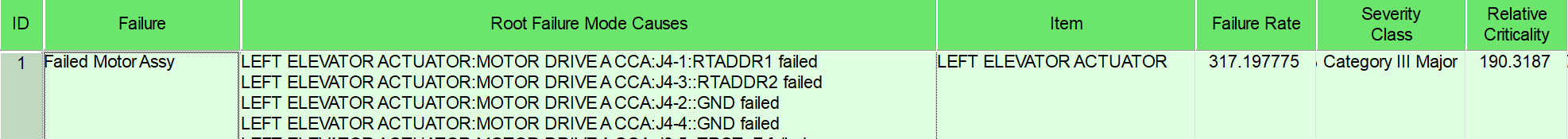

"eXpress Critical Failure Diagnosis Chart"

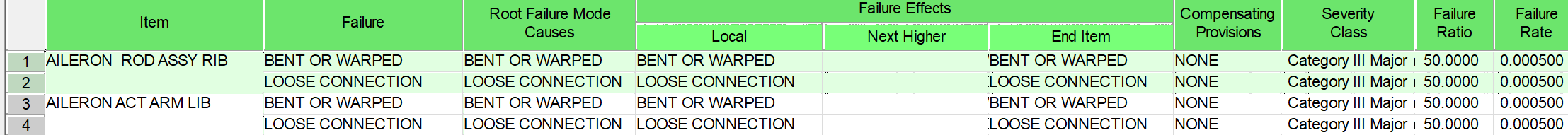

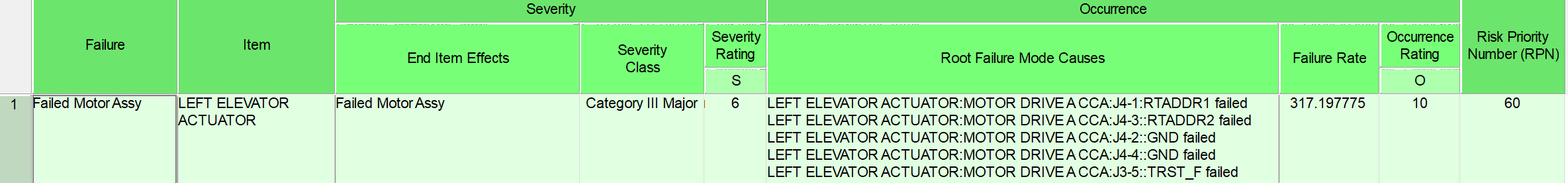

"eXpress Risk Priority Assessment Chart (Brief)"



"eXpress Risk Priority Assessment Chart (Detailed)"

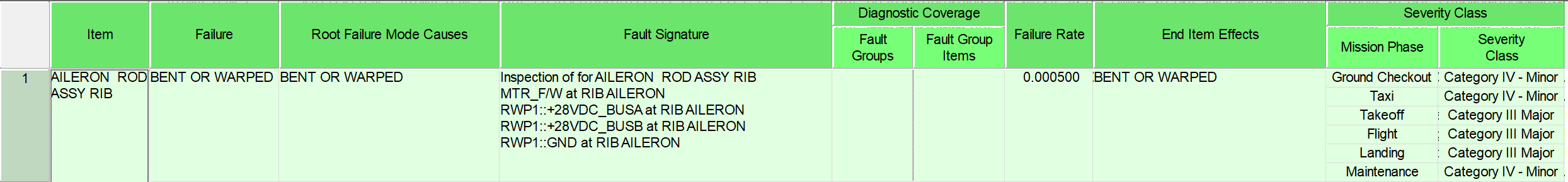

"eXpress Fault Signature Analysis Chart"

- Requires a Diagnostic Study to have been run first - Shown with Mission Phases turned on

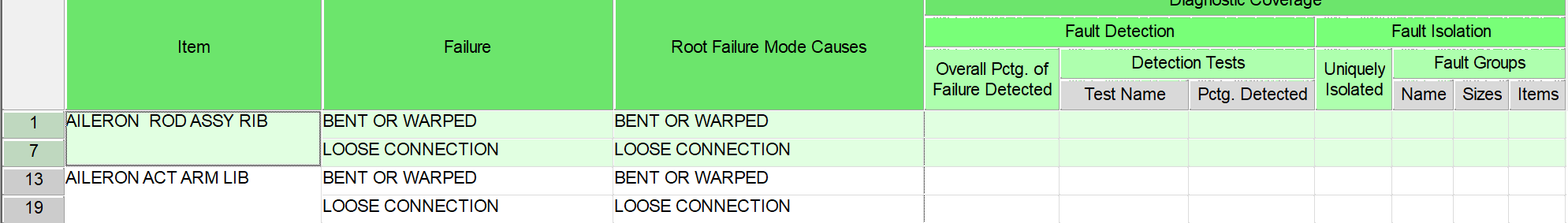

"eXpress Diagnostic Coverage and Remediation Chart"

  - Requires a Diagnostic Study to have been run first

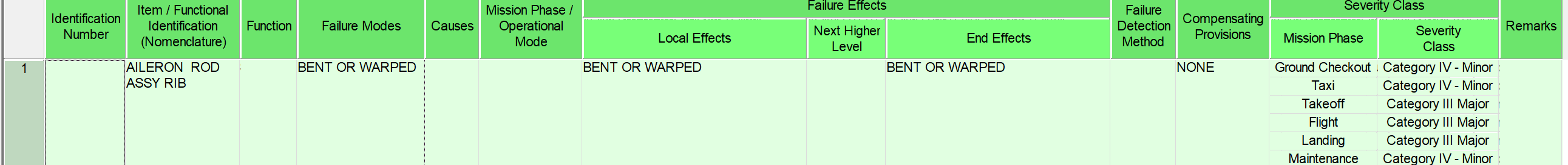

"Traditional FMEA Worksheet"

- Here shows some empty columns for items not setup in the Attributes for this model

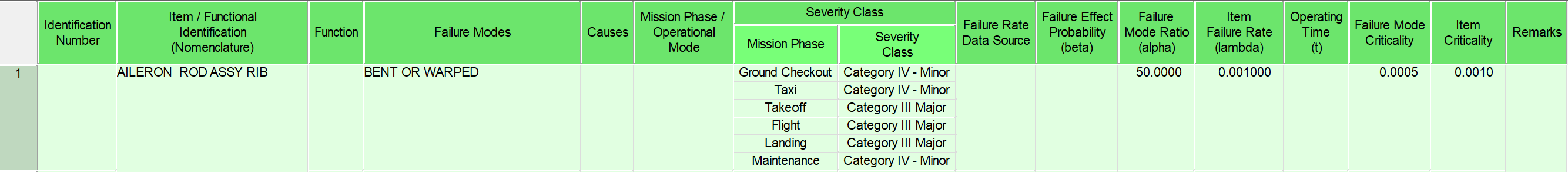

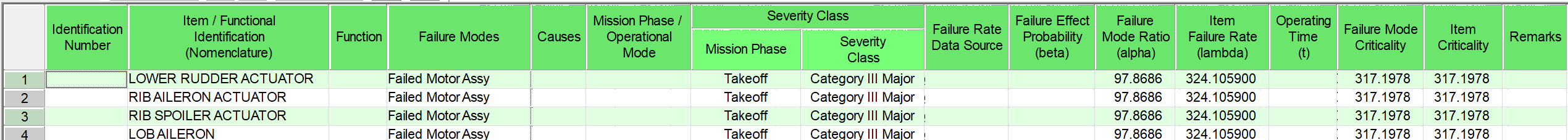

"Traditional Criticality Worksheet"



"Traditional FMECA Worksheet with Maintainability Data"
