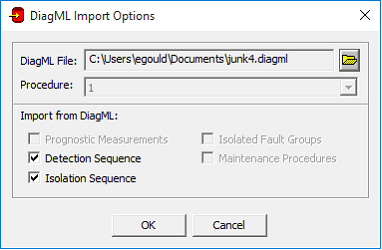

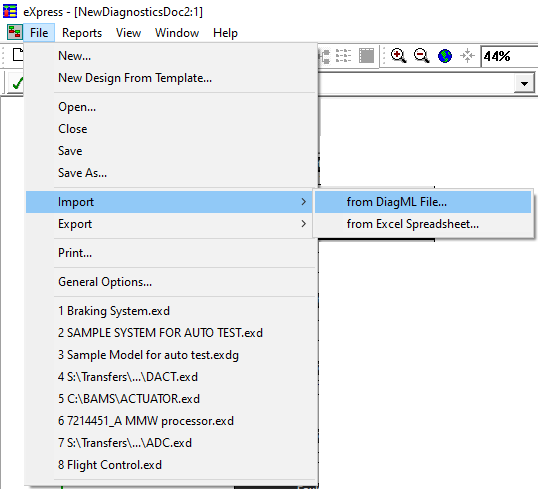

Test sequences can now be imported from a DiagML file (provided that the <DiagnosticData> section was included in the DiagML export). The import can be invoked In Diagnostics use the above Import Select to open tghe window at the right.by selecting “from DiagML File" …from the Import section of the main File menu when a diagnostic study is active as shown above. The following DiagML Import Options dialog will then appear:
Click on the open icon and select the source DiagML file.
You can then specify whether you wish to import only the detection sequence or both detection and isolation.
Click on “OK” to perform the import.
Once the test sequence has been imported, you need only calculate fault groups (at the current time, fault groups cannot be imported). For imported test sequences, a series of checkboxes will be automatically enabled on the “Diagnostic Sequence” panel of the Diagnostic Study Options dialog. This will prevent unnecessary tests from being removed when fault groups are calculated.
