In addition to the colors associated with interference (described earlier in this document), a few other changes have been made to the colors that are displayed for objects in the design window as a test is edited.
For Analyst-initiated and probe tests, items with functions that can be detected but not proven are now colored red, rather than orange.
This will only occur when “Include Non- Detectables in Detected Coverage” is selected on the Interpretation panel.
In all other situations, non-detectable functions will still be colored orange.

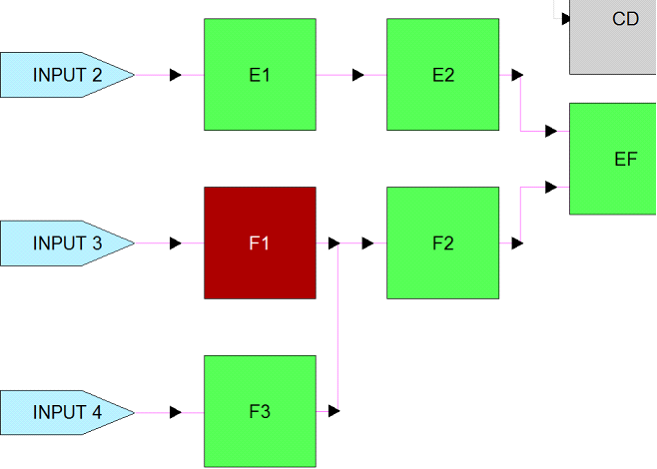

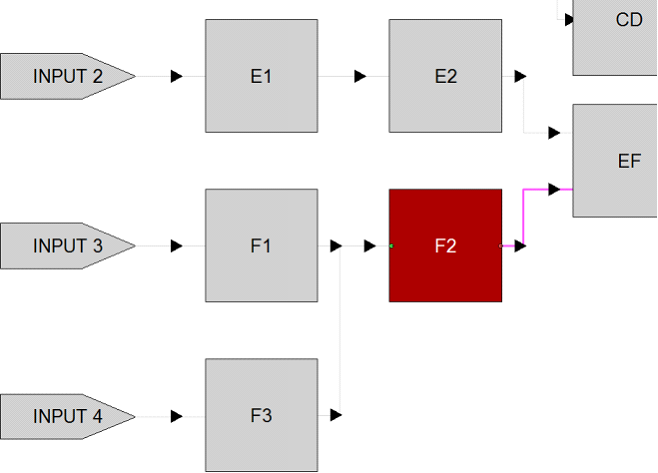

For signature, inspection and effect-based tests, the coverage is now colored red when testing for malfunctions and green when testing for operation/malfunctions.
Also, for tests based on failure effects, a lighter shade of red or green is used to indicate when coverage has been inherited from lower-level effects.

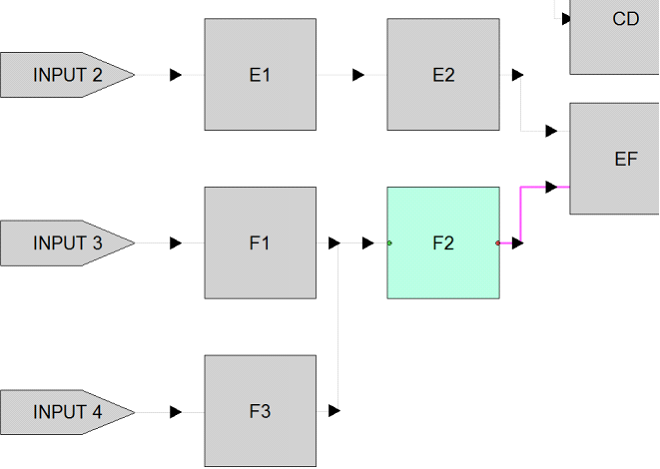

A new shade of bluish-green is used to indicate the coverage of an inspection test whose symmetry is set to “Inspect for Operation”.
