Test Sets can be removed from a design using the Explorer Tree or operations in the Design menu. Once removed, test sets cannot be restored. Keep in mind that it is easy to exclude test sets from analyses so that deleting test sets is only required when the particular test set(s) are no longer wanted. For this reason eXpress requires delete test sets to be selected twice with a warning window.
How To Delete Selected Test Sets

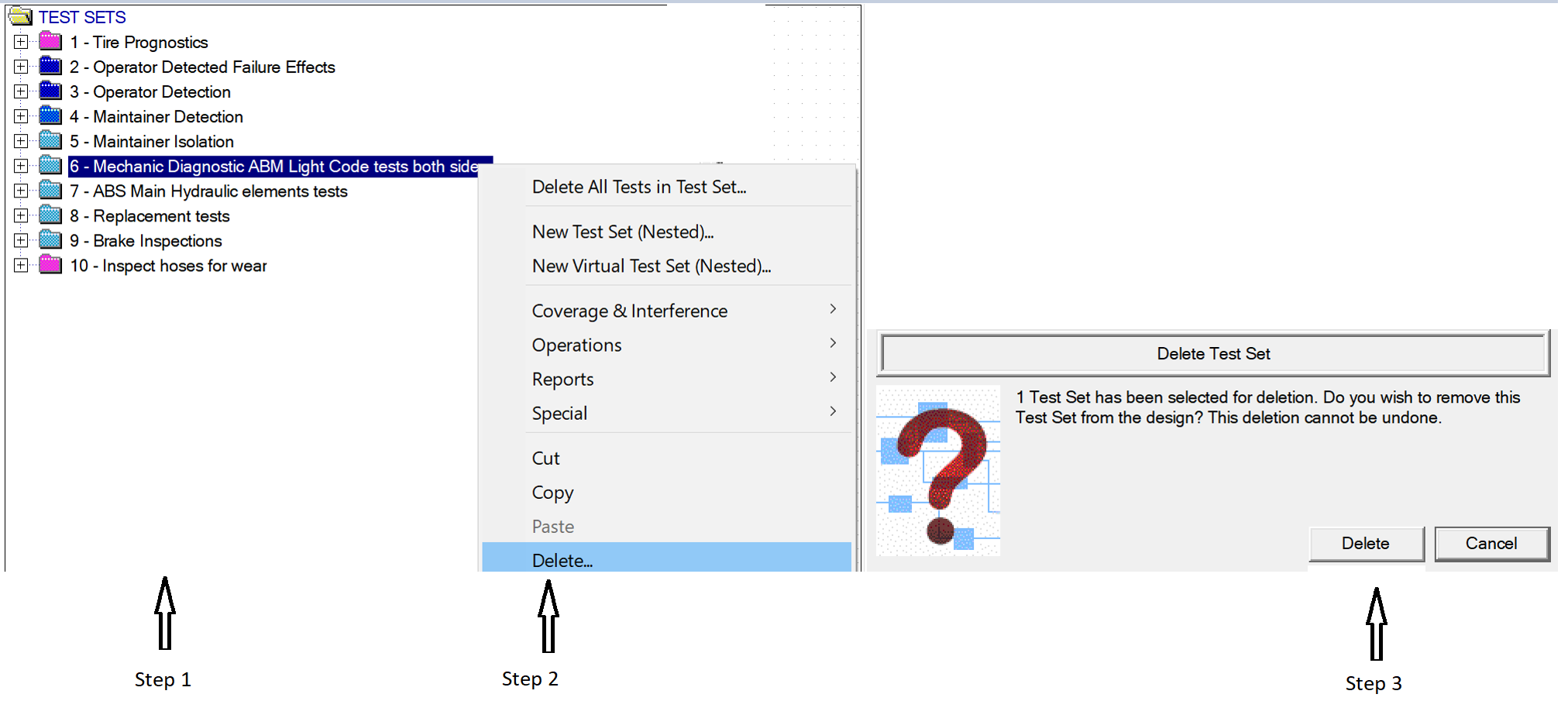

Step 1
In the Explorer tree, select the test set(s) to be deleted with right hand mouse button as shown above.
Step 2
Choose "Delete..." from the "Options window" menu with "left hand mouse button"
Step 3
Choose "Delete" from the Warning "Test Set Window" with Left hand mouse button".
Alternative 1
All Tests can be removed from the design by selecting "Delete All Tests in Test Set" from the Test Sets submenu within the Design menu (top Option in Step 2 above)
Alternative 2
All Test Sets can be removed from the design by selecting "Delete All Test Sets" from the "Test Sets Options window" within the Design menu"TEST SETS" folder (not shown here)
