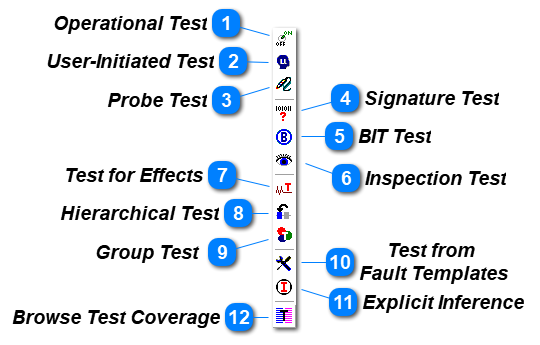

When the Test Set Editing Mode is enabled, the Design Editing toolbar (depicted below) contains icons that are used to create new Testswithin the activeTest Set. By default, the Design Editing toolbar is displayed vertically on the far left side of the eXpress program window (although, like other toolbars, the Analyst can change its location).
Probe tests are path-based tests(defined either at an IO flag or on any net for which coverage can be modified via state selections, de-selected stimuli, and non-detectable functions/failure modes.
Hierarchical Tests are complex tests that allow lower-level tests to be performed at higher levels of ahierarchical design. The way in which hierarchical tests are elaborated depends upon the test type of theinherited test.
