On Failure Modes

Feature Description

The most common Class used is the "Noise immunity class" on dedcoupling capacitors to remove the failure moded "open" condition from being detectable in diagnostics.

HOW TO:

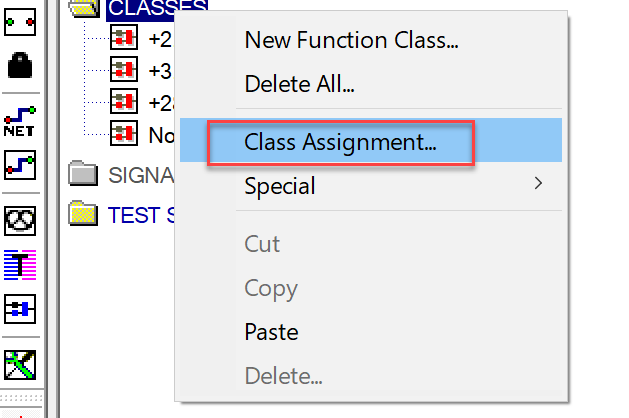

Select Class Assignment

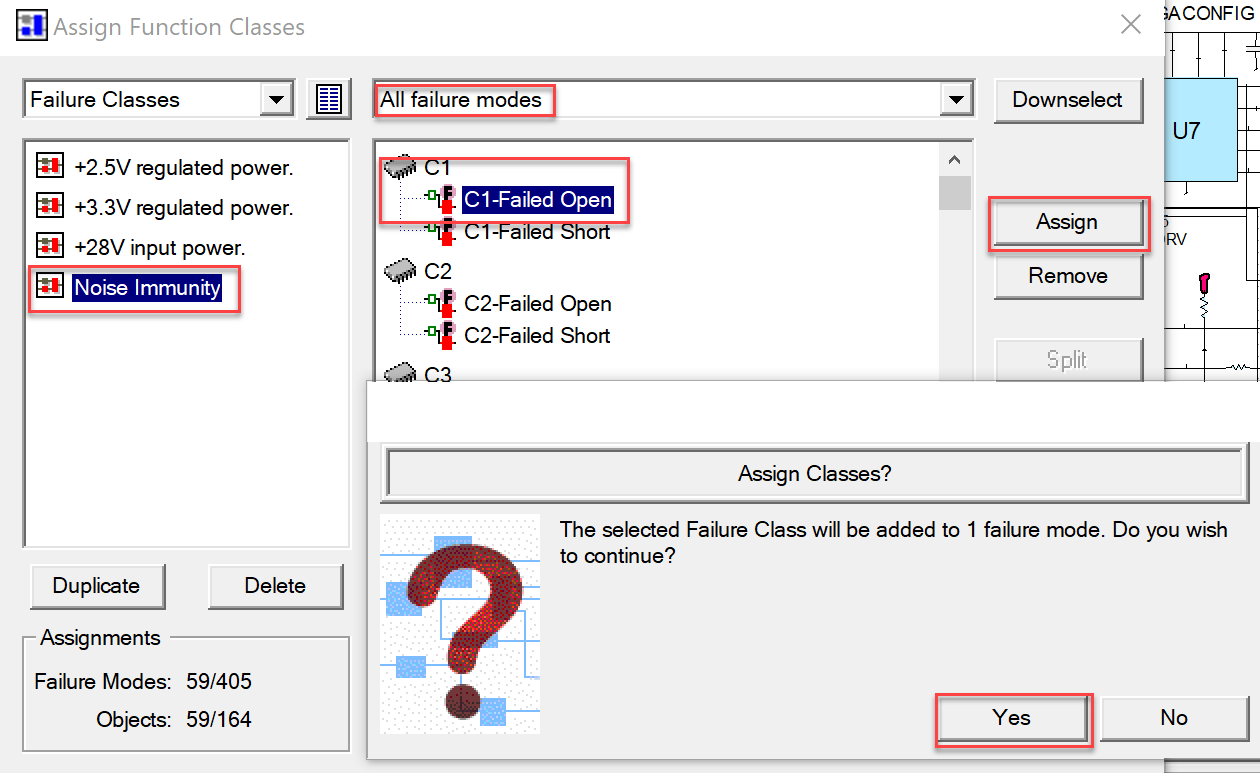

Select Failure Class

Select all Failure modes

Select individual Failure Mode

Select AssignSelect Yes
