The Diag-ML format was conceptualized mid 2001 by a consortium of public and private companies interested in producing a non-proprietary language for describing diagnostic procedures, designs, tests, and data.
In eXpress DiagML can be exported from a Diagnostic Study using the DiagML export. The exported data can be customized to include data for:
Transfer of Knowledge to Run-Time Systems
Diagnostic and Prognostic Knowledge Capture
System- and Subsystem-Level Diagnostics and Prognostics
Third-Party Diagnostic and Testability Assessment
Static, Dynamic and Rule-Based Diagnostics / Prognostics
Diagnostic Flowcharts and Fault Trees
Export to Maintenance-based Simulations
Remote Diagnostic / Prognostic Engines
The export has several pre-defined templates for export of diagnostic data. These predined templates include:
Predefined
Export Name
Included Data
Design Data
Design Appearance
Test Coverage
Diagnostic Flow Diagrams
Maintenance Data
Statistical Data
Export DiagML for Static Reasoning
X
X
X
Export DiagML for Dynamic Reasoning
X
X
Export DiagML for Static or Dynamic Reasoning
X
X
X
X
Export DiagML for the DSI Workbench
X
X
X
X
X
Export DiagML for Web Deployment
X
X
X
X
X
X
Export DiagML for STAGE
X
X
X
X
A DiagML Schema

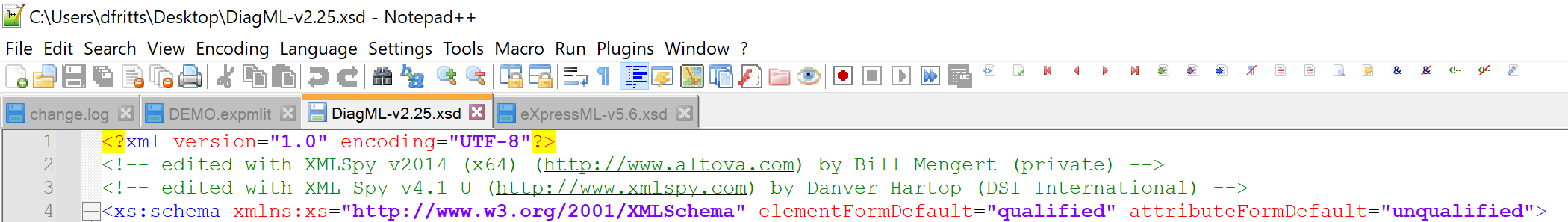

This Schema shows the type of data that is exported using DiagML
