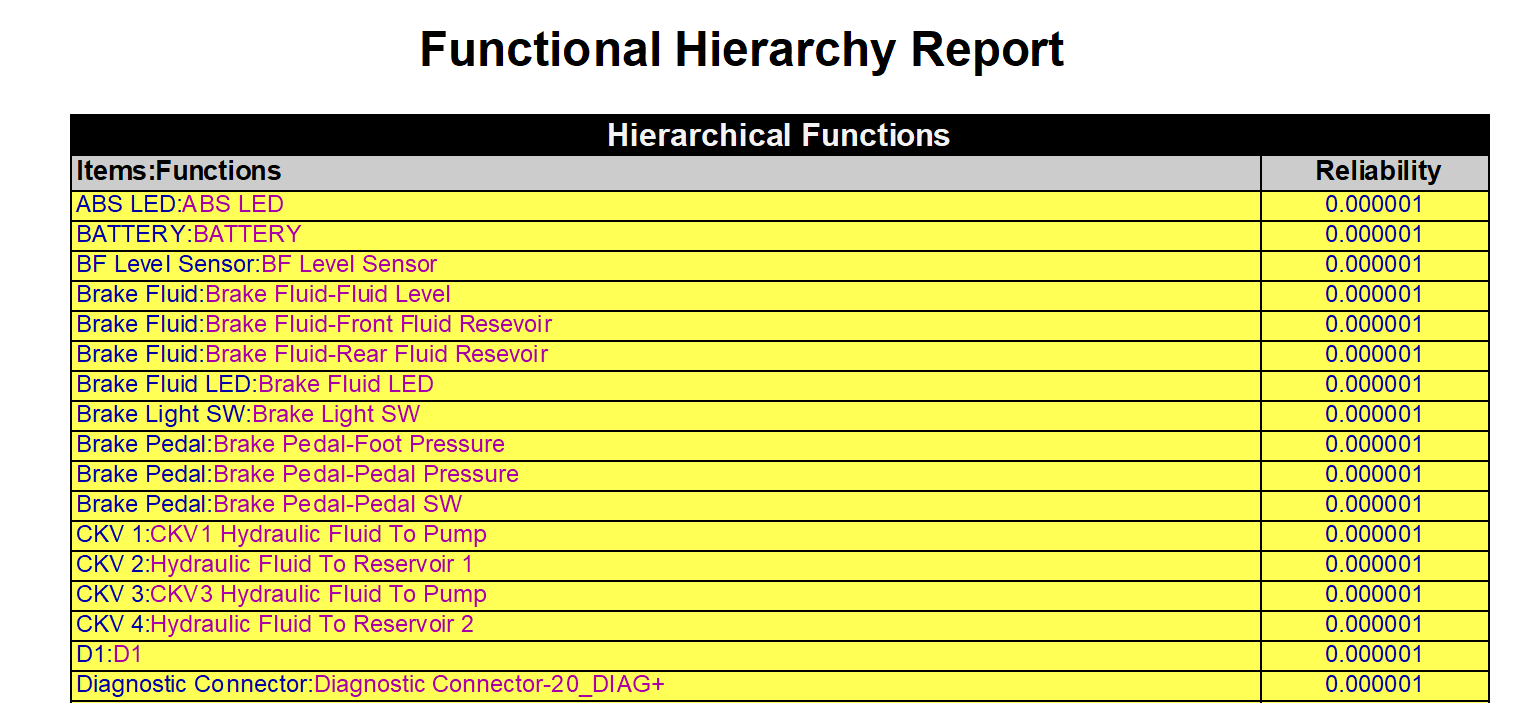

Functional Hierarchy Report - Reliability



|  |  |
Tjhrough all Items

Usage: To insure all Function Reliabilties are set up right if used. Here we see the default Reliabiltiy for all functions (0.000001). This means that each ouitput port Function on the Object (Item) is proportioned equal from the Object Reliabilty. For this example the The Brake Pedal has 3 output functions so the Brake Pedal reliability (8.57722678) would be portioned (8.57722678/3) for each output for diagnostic allocations of ambiguity sets.

This List Report is alphabetically sorted by "Item: Functions" (Object name or Reference Designator)
