Multiple Design Sheets may be opened with various models to allow the Analyst to quickly navigate between work areas especially when working with hierarchical models.

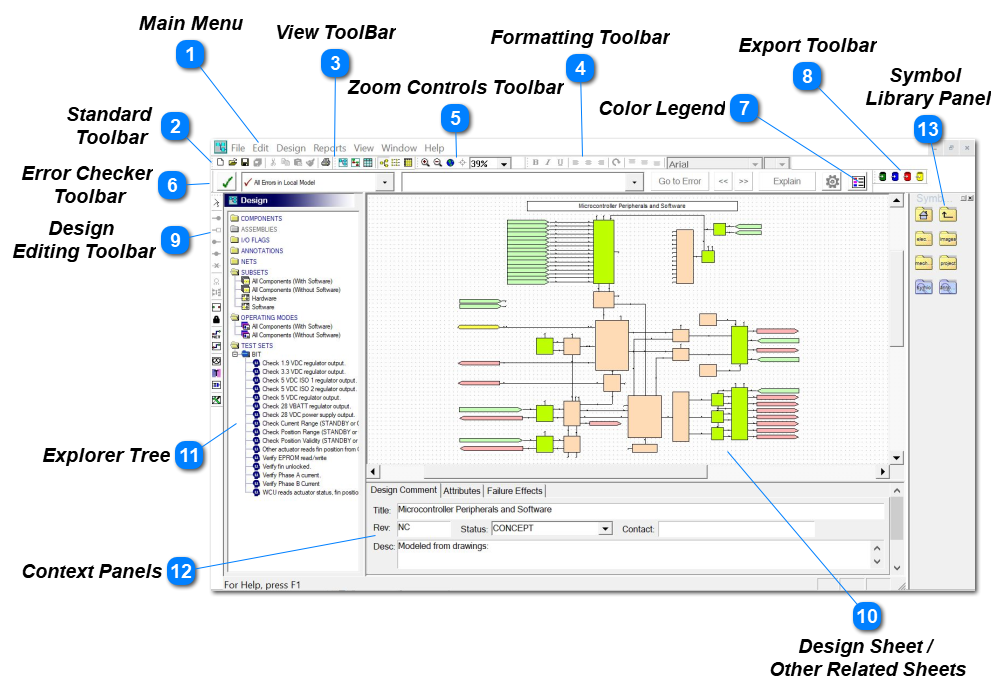

Main Menu
The eXpress Main Menu which contains file open, save, import, export and edit commands. Design batch editing features, reports, view and display controls, file window controls and help options are also included.
Standard
Toolbar
The Standard toolbar provide quick access to several commonly used operations that appear in the File and Edit menus.
View ToolBar
The View toolbar is used to invoke the different the view types: Design, Diagnostic and FMECA. In addition, in design view mode the view toolbar can switch between Drawing View for modeling and Grid View for displaying model details as a spreadsheet.

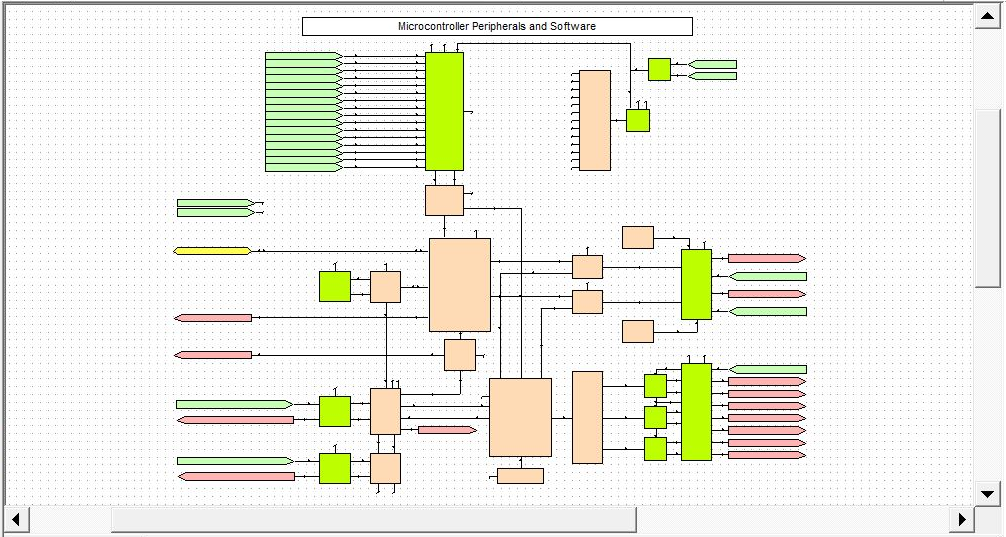

Fixed window in which the Analyst’s design is displayed. (At certain times, eXpress will use the Design Sheet area to display other information about the design.)

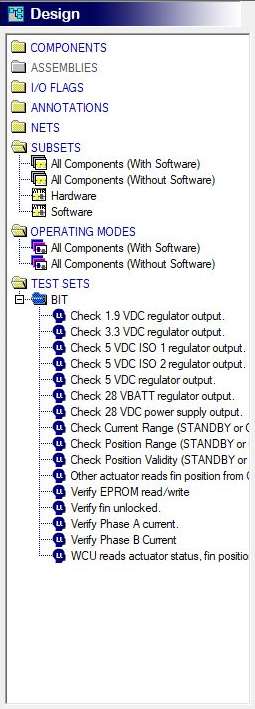

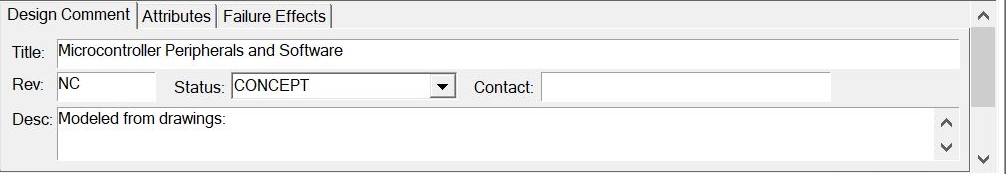

Explorer Tree
Fixed tree providing a display/editing interface for objects, nets, subsets, Operating Modes and test sets.
