Independent-Mode Diagnostics
What are Independent Mode Diagnostics?
When
eXpress runs detection and Isolation (
Non-Independent Mode) each detection test results in an
ambiguity set of the items that were detected. Isolation then uses all the designated isolation tests to breakdown this
ambiguity set to the smallest
ambiguity sets it can achieve with the existing isolation tests. In that breakdown, if an item is isolated out of the
ambiguity set it will not appear in an
ambiguity set detected by any other detetection test (It is considered detected and Isolated).
In
Independent mode every detected
ambiguity set must be isolated out separately independently of any other detected or isolated
ambiguity set.

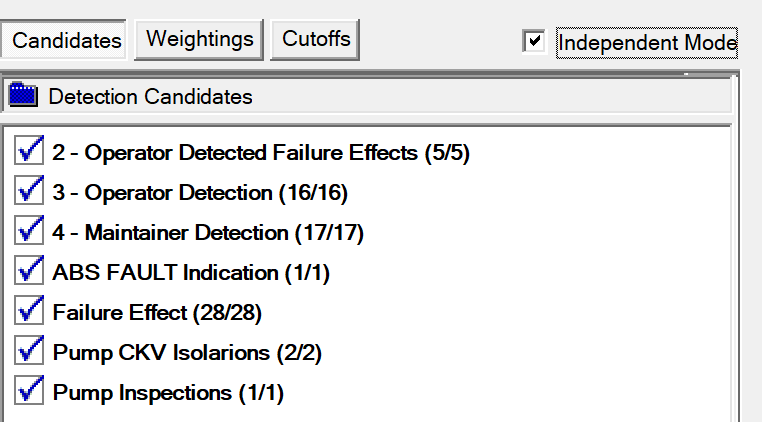

Checking the Independent checkmark, when setting up what detection test to run, causes the detection and Isolation to run in Independent mode.
|
|

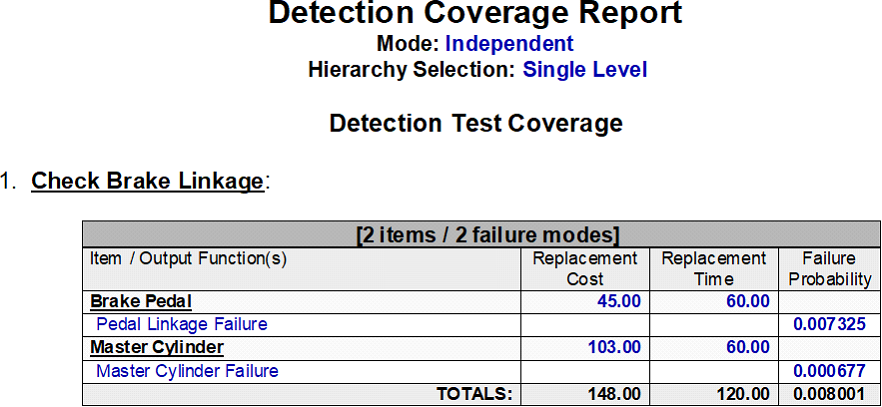

When you run the Coverage Report, separate coverage and interference sections are not included for independent mode diagnostics. Instead, the numbers of items, functions and/or failure modes covered by each test are listed in a single section (see below).
