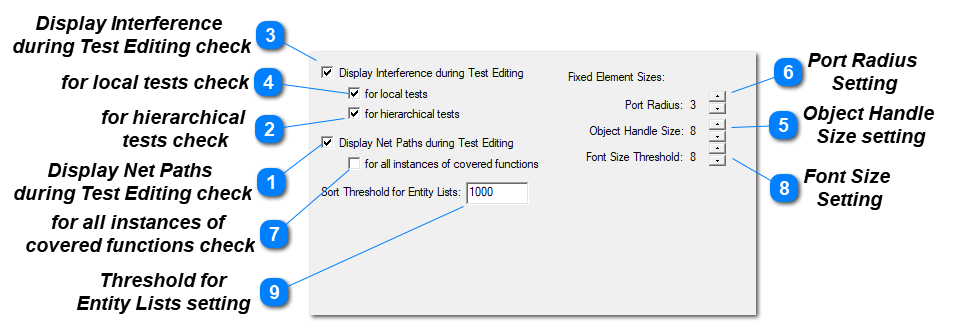

General Options windows_Display Options


General Options windows_Display Options
1

Display Net Paths

during Test Editing check

1. Display Net Paths during Test Editing check
This causes the nets to light up when a test is selected for all the coverage paths of the test.  Setting only effects what the Analyst see and has no effect on the detection or isolation

2

for hierarchical

tests check

2. for hierarchical tests check
This causes interference to show up on hierarchical tests

3

Display Interference

during Test Editing check

3. Display Interference during Test Editing check
This causes interference to be displayed for generated tests
4

for local tests check

4. for local tests check
This causes interference to show up on local tests
5

Object Handle

Size setting

5. Object Handle Size setting
This allows a Analyst to change the size of Object Conner box (resizing Handle) for High Definition Monitors Model Elements to Control

6

Port Radius

Setting

6. Port Radius Setting
This allows a Analyst to change the size of Object Ports for High Definition Monitors Model Elements to Control

7

for all instances of

covered functions check

7. for all instances of covered functions check
This allows the Analyst to tuen off cover funtions within a test
8

Font Size

Setting

8. Font Size Setting
This allows an Analyst to change the Object Abbreviation (Name) size for High Definition Monitors Model Elements to Control

9

Threshold for

Entity Lists setting

9. Threshold for Entity Lists setting
On the Net Functions panel, the net functions are now listed alphabetically by default. So that the interface is not bogged down when you click on a net that has a massive number of net functions, there is a threshold for sorting the list. The default is 1000—meaning that (by default) the list will only be alphabetically sorted for nets containing 1000 or fewer net functions.
