Import Affected Function Setup



Feature Description



How to Setup affected Functions On Imported Failure Modes

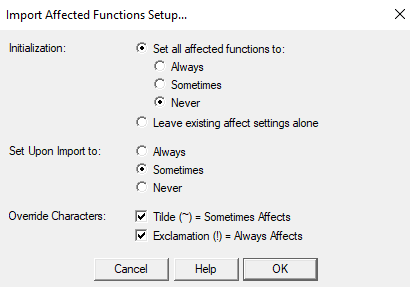

The Import Affected Functions Setup dialog provides advanced control over how affected functions are established when failure modes are imported. This dialog, which can be invoked by clicking on the "Affected Function Setup..." button on the Failure Mode Import Data Source panel on the Data Source Administration dialog, appears as follows:


The following options are available:

Initialization - This setting specifies the default setting to be applied to each failure mode's affected functions (the setting used if an output function is not listed for that failure mode on the spreadsheet). Normally, the import unmarks all functions and then marks only those found in the spreadsheet. If the spreadsheet is meant to supplement what is already marked, select the "Leave existing affect settings alone" options.

Set Upon Import To - This setting identifies the affected function setting to be used when an output function is listed for a given failure mode on the spreadsheet. It can be marked as either "Always Affects", "Sometimes Affects" or "Never Affects". The default setting ("Sometimes Affects") is the most diagnostically conservative option.

Override Characters - Specifies what special characters can be used in the spreadsheet to override the import setting. With the default options, placing a tilde in front of the output function name can be used to indicate a sometimes affects relationship, and an exclamation point can be used to indicate an always affects relationship.
