- Data Source Administration is a main feature of eXpress for controlling lower level assembly linking, Design Templates, Spreadsheet Importing, XML Imports and Plugin Imports

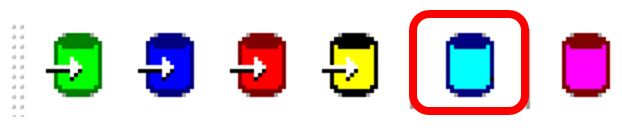

Use toolbar ICON, shown at left, to open Data Source Administration Window

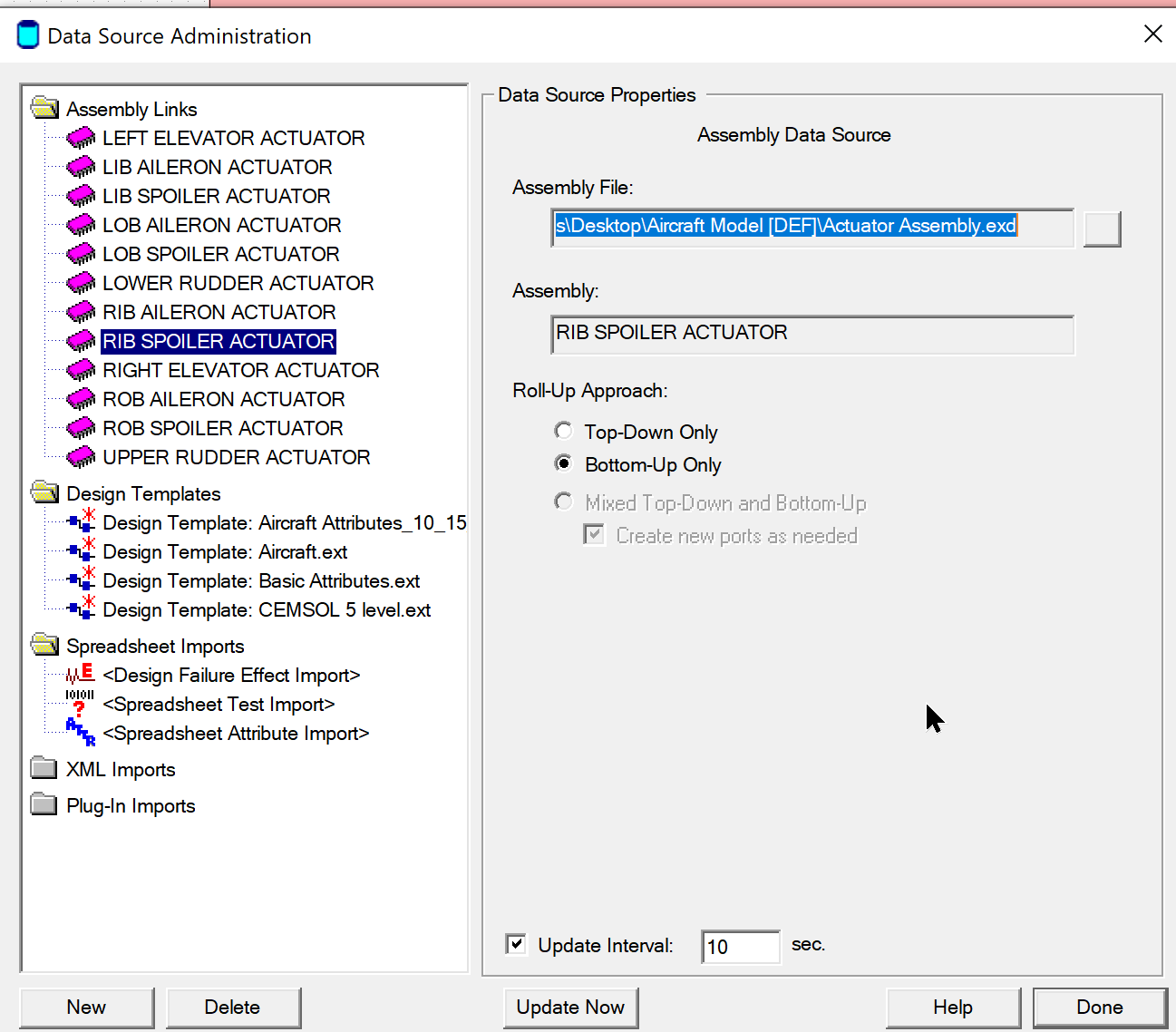

The Data Source Administration Window
The window to the right shown here for familiarization is a prime control element of the eXpress tool. Data Source Administration provides Controls for 5 eXpress data source categories.
The "New" Button at the bottom of the window is used to open create new Data Source windows as described for each of the categories listed in the table below.
The Data Source Properties window at the right will change for each of the main uses of the Data Source Administration. Here we see the Assembly Data source window. The Links given below will provide helps for each of these features
Following are links to Importing Helps. The Data Source Administration dialog provides the ability to explicitly control the data sources from which data is extracted, inherited or imported. This dialog can be invoked by selecting "Data Source Administration" from the Import submenu within the File menu, or holding down the Ctrl+D key combination on the keyboard. Using this dialog, the Analyst can change the Assembly Links Port Rollup Controlsof assemblies or perform and manage the following types of data sources (refer to the topic "Spreadsheet importing" for additional information)
