- “Forced Propagation” which applies only to output (and bidirectional) ports—causes all net functions emerging from a port to be automatically included in any user-defined input filters on ports connected to the same net. Net functions that have been included in an input filter due to forced propagation will not be discarded when model changes result in those net functions being automatically recreated.

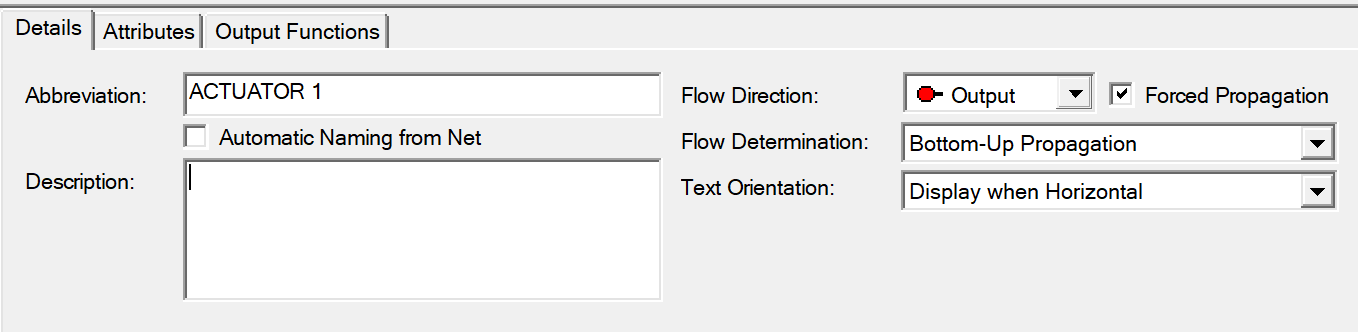

To open the Port Details Panel below select the desired output port from the assembly in the Explorer Tree
Setting Forced Propagation in a batch of ports
- Setting up propagation in Grid View as shown below.

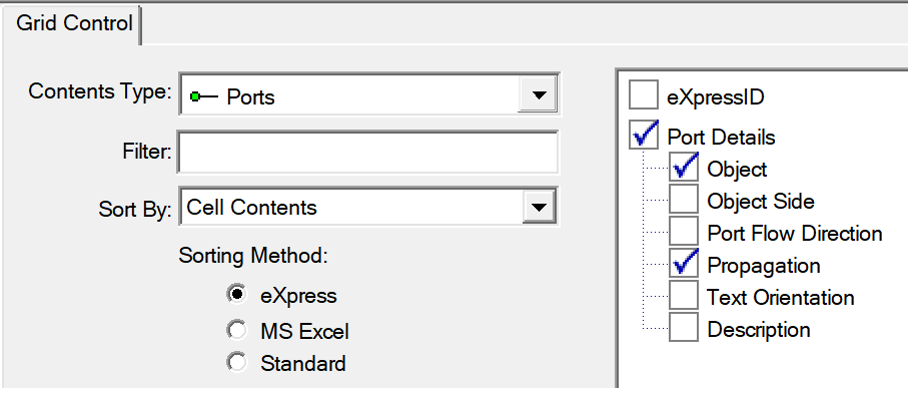

Select the columns to view in Gridview

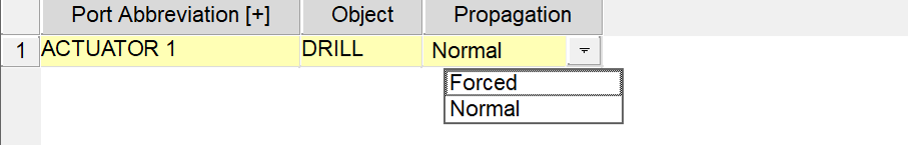

Grid view Propagation allows changing Propagation between Normal and Forced as shown here
On the Input Functions panel, net function dependencies that have been included due to forced propagation are listed in bold green text. If you attempt to remove one of these net functions from the list, a message will appear explaining why this cannot be done.
Note: Forced propagation will be immensely helpful in situations where input functions have been filtered to prevent feedback or cross-talk; it should not be used, however, in filters whose purpose is to constrain the propagation of individual net functions that emerge from a port.
