This group of reports is the most comprehensive set of reports for the analyst to analyze the results of the diagnostic analysis. The setups for this group of tests allow for a wide  variance on what each report contains. Following are links to samples of each of these reports which contain additional links to the setups and algorithmns used to create these reports.

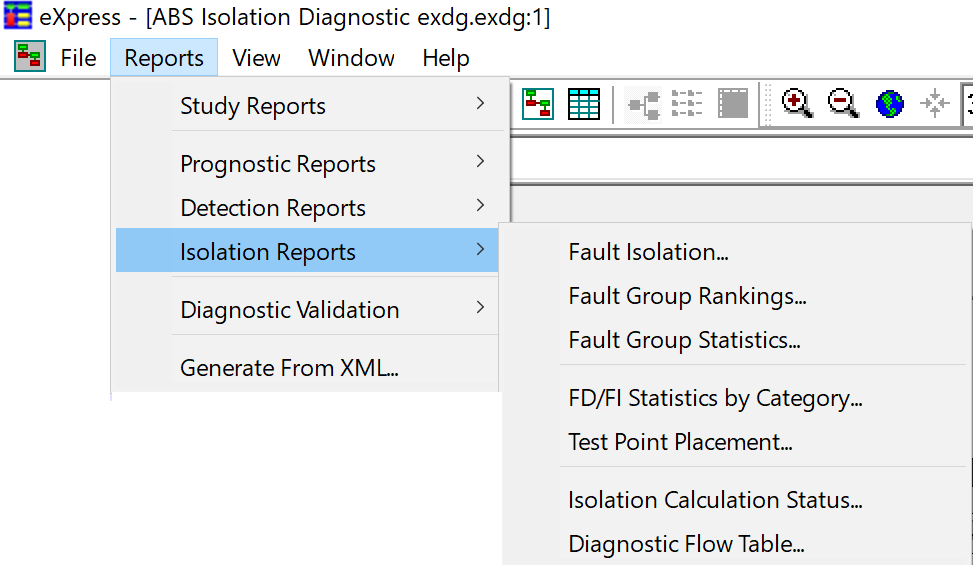

To Select a Fault Isolation Reports in Diagnostics use the Reports toolbar as shown below with links to each sub-category of Fault Isolation Reports shown to the right of the selection template.
