Modeling Color Templates

Feature Description

ICON

Standard Color Templates

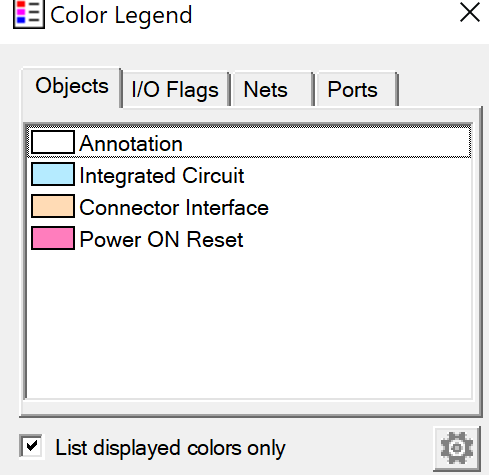

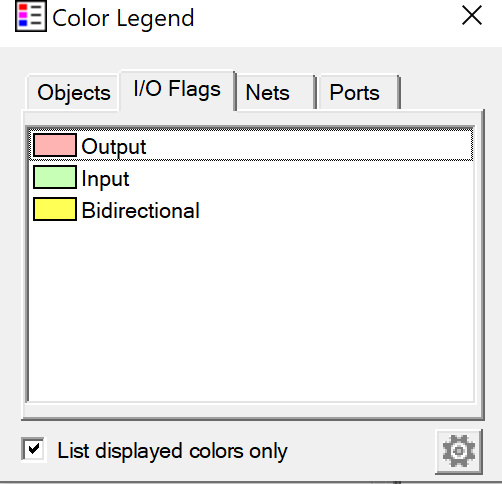

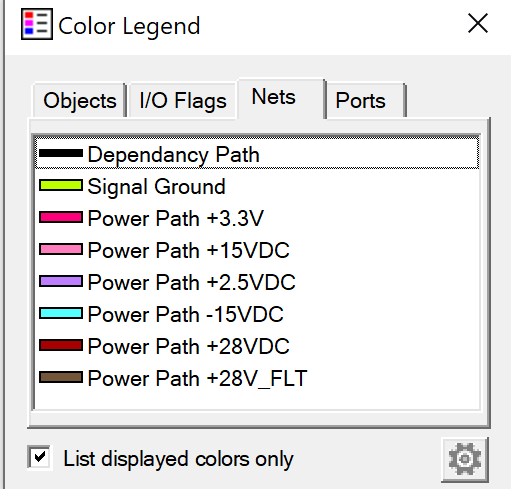

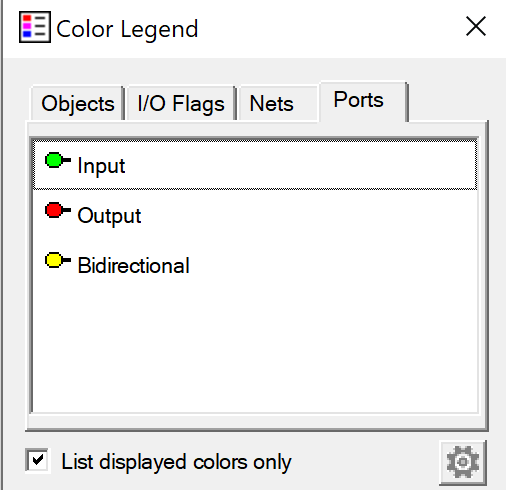

The four Templates shown below are the Standard Color Templates. Colors for the first three are at the discretion of the Analyst. Port colors are fixed an cannot be changed.

It is strongly reccomended that the Analyst fill out the first three (Objects, IO Flags, & Nets). Color Templates Options and Other eXpress Color Legends

HOW TO:

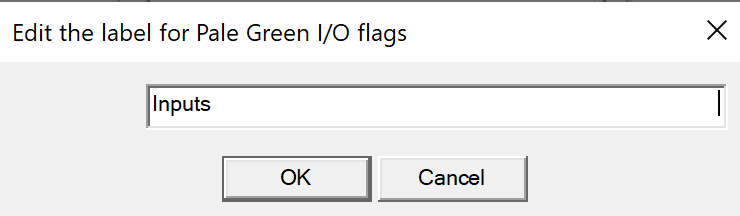

To define a color click on the color in the legend and the window shown at the rightwill open to define the color usage. Then click OK.

Below are samples of typical Color Legends in Models
