Feature Description
|
|
The AB state identifies the pathway between ports A and B, as indicated in the picture shown below. In the definition for this state, the output functions Ab and B should be listed as active functions.
|

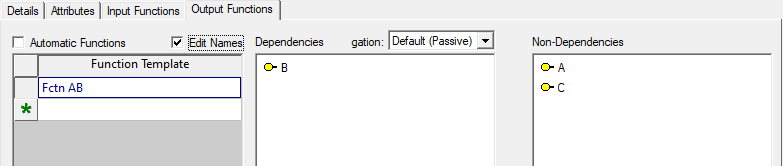

In the following panel, we show the dependencies for the output function AB, which appears on port A. To find this panel, click on port A and select the "Output Functions" tab. The B function, which appears on port B, is similar and just depends on A.
To support the full bidirectionality, we've enabled both the B and AB functions. It is essential to include both, otherwise the state will reduce the functionality to a single direction, which is not desirable in this case.
In the State Definition panel (click on the object and choose "States"), the following definition is used for the AB state.
