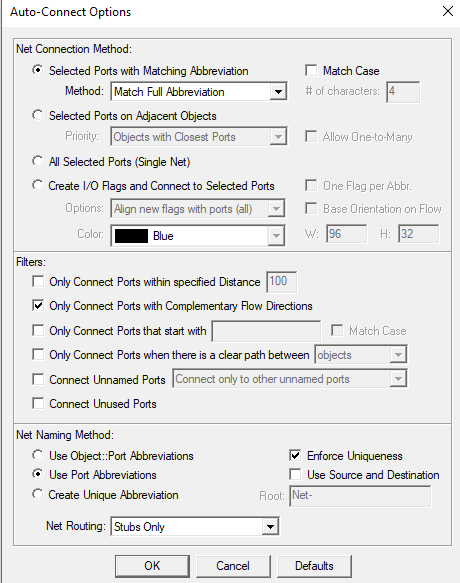

(depicted below) allows the Analyst to customize the automatic net creation process so that it can be used in a variety of situations.
This dialog is divided into three sections. In the first section, the Analyst must select one of four net connection methods. In the second section, the Analyst can specify one or more filters that constrain the set of ports to be connected. The third section allows the Analyst to define how the net will be named and the routing method to be used. Use the following links to to learn more about the options in each section:
