The Manage Hierarchical Duty Cycle Lists Dialog (depicted below) allows the Analyst to manage (using a single dialog) all links from a selected hierarchical duty cycle list to lower-level duty cycle lists. NOTE: Duty Cycles must be predefined on assemblies in order to be linked
How To Mangage Hierarchical Duty Cycles

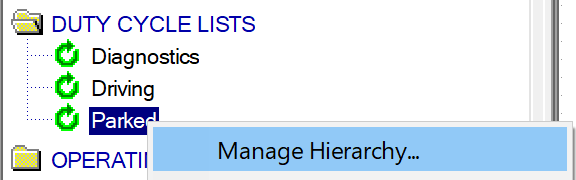

Selecting Manage Hierarchy with right hand mouse button opens window at right to link Duty Cycles to assemblies.
ICON Will link all assemblies with same Duty cycle name

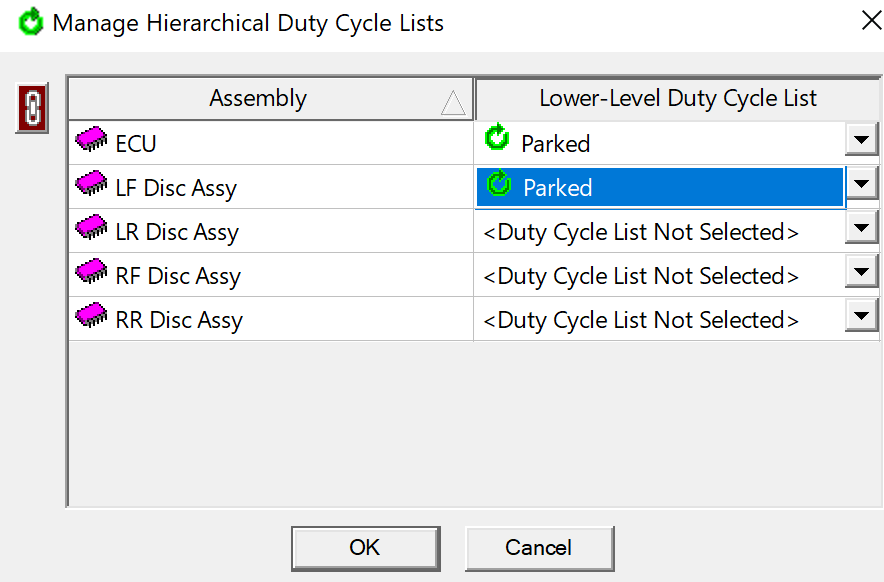

On this dialog, the Assembly column lists all assemblies in the current design and the Lower-Level Duty Cycle List column lists the duty cycle lists in the lower-level design that have been selected for each assembly. The Analyst can change the assigned lower-level duty cycle lists by clicking on a cell in this column and selecting a list from the drop-list that appears.
In the upper-left corner of the dialog is the Autolink icon. Click on this icon to automatically select all lower-level duty cycle lists that have the same name as the upper-level duty cycle list for which hierarchy is being managed.
ICON Will link all assemblies with same Duty cycle name
