Text Attribute

Feature Description

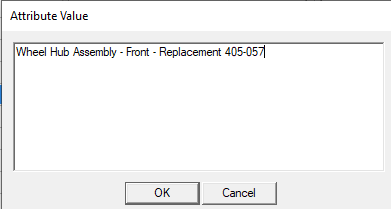

The text Attribute is used for assigning a text value of any length.The editing dialog for text Attributes (displayed below) uses a simple text box. This dialog can be invoked by clicking on one of the "Edit Default" buttons on the Attribute Definitions dialog (the same editing field appears on the right side of the Attributes panel when editing the value of a text Attribute for a specific element in the design). In this text box word wrapping occurs automatically, and carriage returns are accepted. Should the text exceed the vertical size of the box, a vertical scrollbar will appear.


Text Attributes can also be edited in Grid View (see the topic Attribute Editing using Grid View).

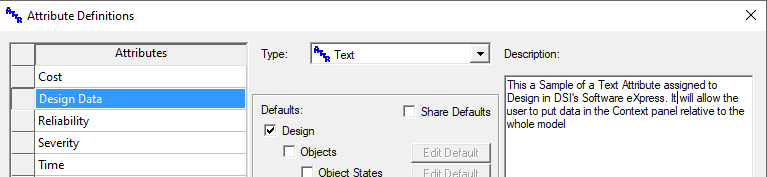

Design Data Attribute

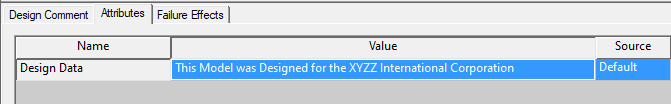

- Here the window shown above does not appear. Instead it allows the Analyst to place text in the context panel as shown below
