Net appearance can be altered in many different ways in order to improve the visual aspect of a design. Often, careful selection of net appearance can help convey more information about the design. The following appearance characteristics can be edited for each net (for descriptions of the different net appearance characteristics, refer to the discussions of the net Appearance Panel and Net Apperance Ideas):
How To Change Net Appearance

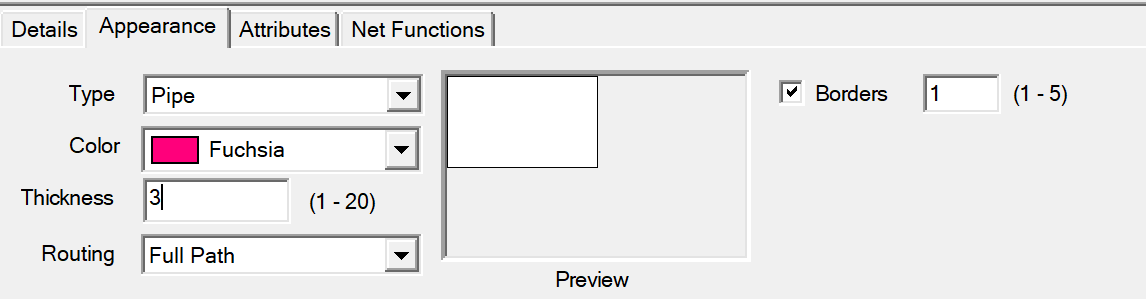

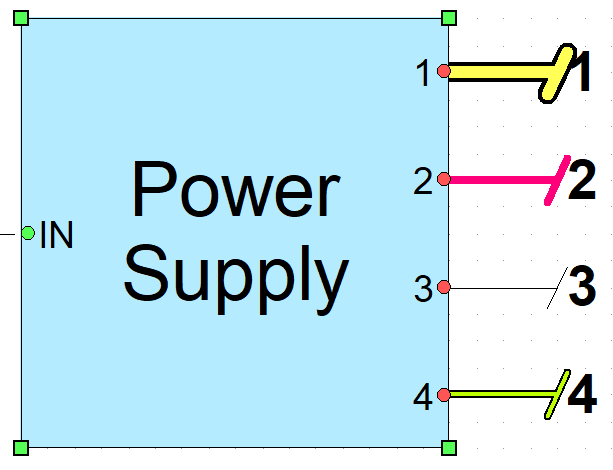

- With the net(s) (one or more) selected use the Appearance tab on the Contest Panel to select how the net is to appear as shown below. This feature is very useful for setting up pipes & showing easily recognized Standard nets such as power and ground that will normally be stubbed.
Net appearance can easily be modified for a single net (or for a batch of nets) using the following steps.
