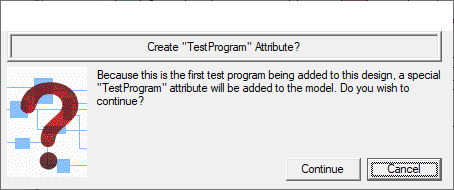

Click on “Continue” to create the special “TestProgram” attribute—a checklist attribute defined for tests (with no space in the name). The checklist will initially have a single entry representing the new test program . The Analyst can then add additional “TestProgram” attributes to catagorize Resources required, methods and conditions of testing,.

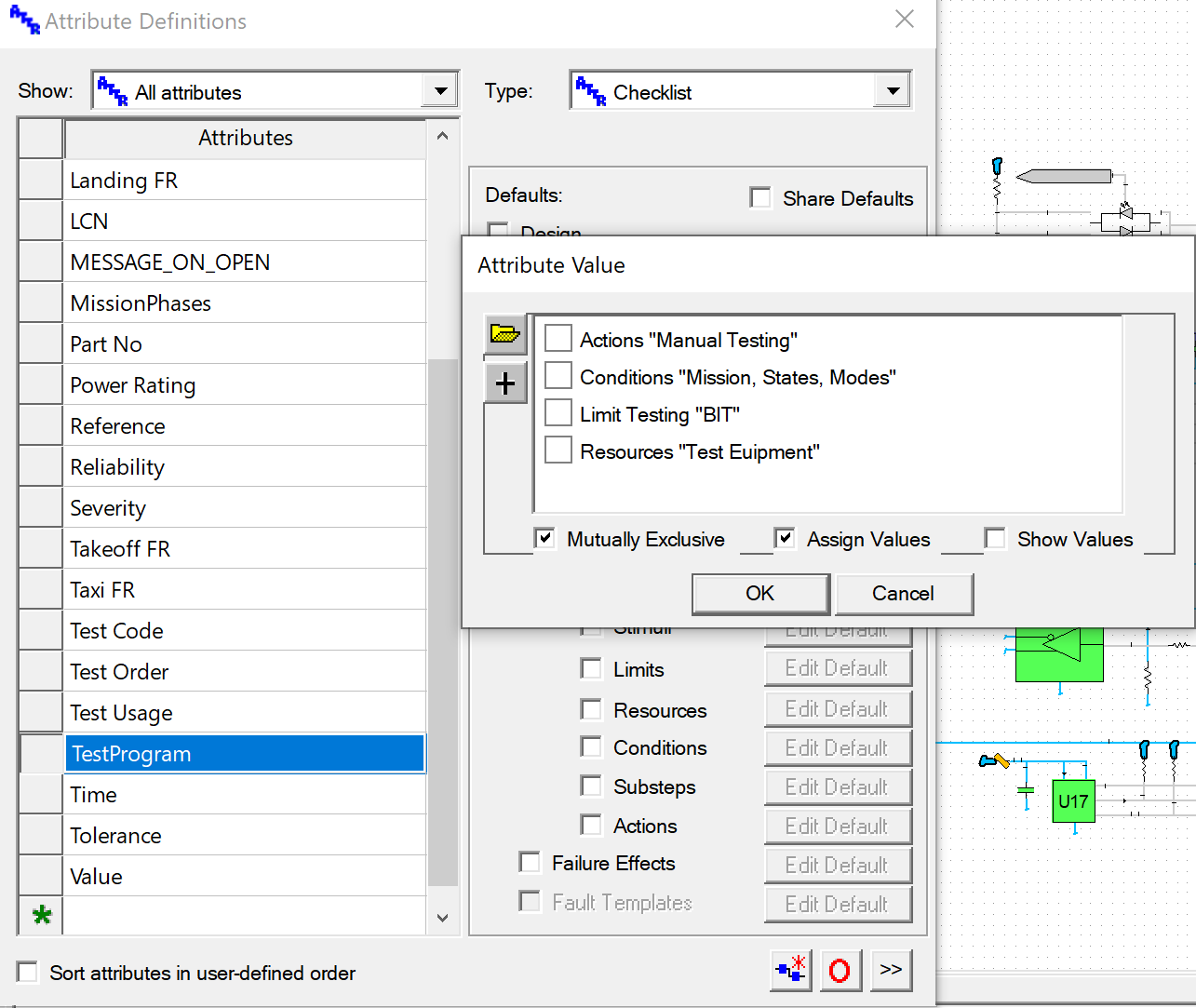

The newly created test program will appear in the Explorer Tree. In the example at right, a test program named “TP #1” was created. If you were to look at the attribute definitions for the design, you would see that a new checklist attribute (named “TestProgram”) has been defined for tests. The checklist will have a single entry—“TP #1”.
If you right-click either on the individual test program name or on the main TEST PROGRAMS folder, context menus will appear allowing you to create additional test programs or remove test programs that you’ve already created.
In the context menu that appears when you right-click on the main TEST PROGRAMS folder, there is an important feature called “Test Program Optimization…” When you click on this entry in the menu, the following dialog will appear:
