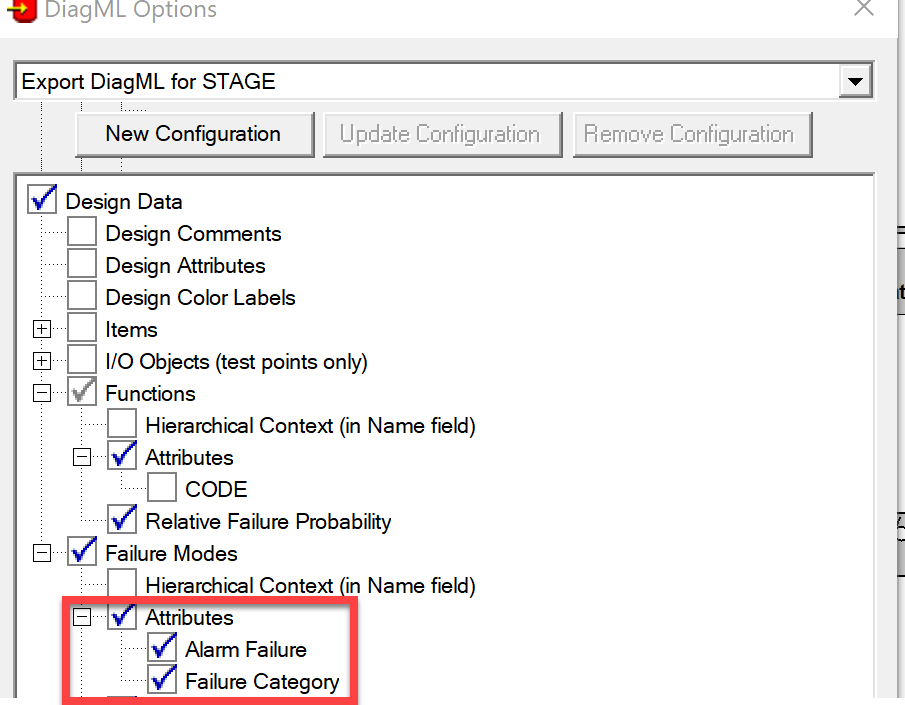

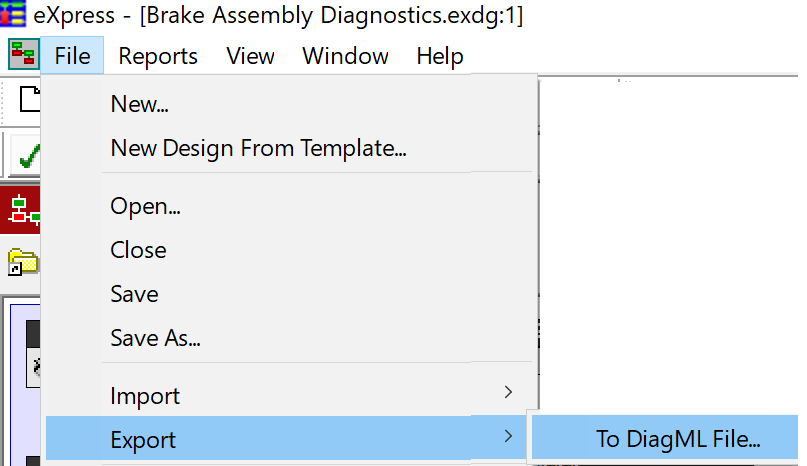

When the “Export DiagML for STAGE” configuration is selected on the DiagML Options dialog, then any checklist attributes named “Alarm Failures” or “Failure Category” that are associated with failure modes are now automatically included in the DiagML export. These are the names of the attributes (defined in the new design template “Attributes for Stock STAGE Calculations”) that are used to support False Alarm and System Abort calculations within STAGE.







Note: STAGE is not a part of eXpress. This STAGE Attribute Template is generated in eXpress for export to use in STAGE.



A brief description of STAGE is Given below.



STAGE simulates aspects of "Diagnostic", "Prognostics and health management (PHM)" and "Integrated System Health Management (ISHM)" Engineering, showing the support capabilities of a System during its useful lifetime. Many types of analysis can be performed on STAGE, including Testability, System Reliability & Mission Success, Sustainability, and Logistics Resource Allocations.



For Full details see https://www.dsi.com/products/stage
