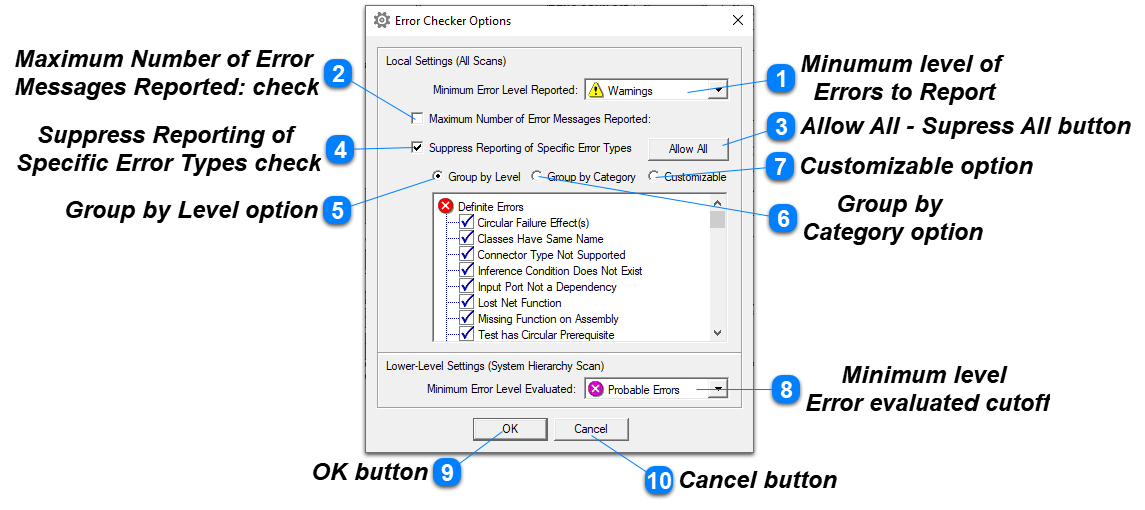

Shows the Minimum Level to report of the 4 Error Types shown at the right.
Definite Errors Must be corrected in order to run diagnostics
Probable Errors should be fixed
Possible Errors will not stop Diagnostics from running but should be examined and fixed if possible
Warnings will not stop Diagnostics from running but should be examined and fixed if possible
Maximum Number of Error
Messages Reported: check
Settable number of errors to report to aid in reducing time to correct errors. Default is 50 (Shows in window when check mark is selected)
Allow All - Supress All button
Toggle Switch between Supress all and Allow All. Works in conjunction with button 4 (Suppress Reporting of
Specific Error Types. (Will only show when Button 4 is selected)
Suppress Reporting of
Specific Error Types check
Opens and Closes window below for Error Category Selections. Windo will be Grayed out when this check is not selected

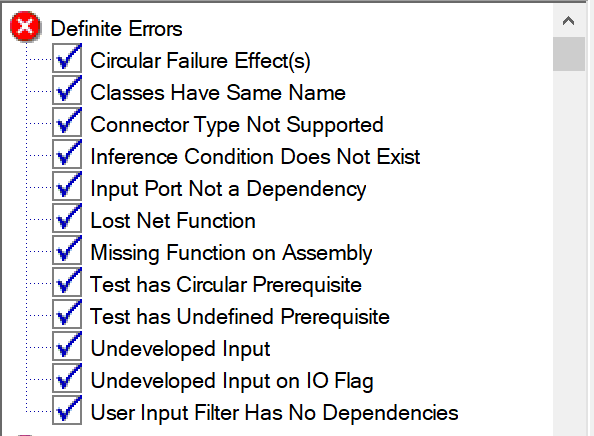

Group by Level option
Select Items to show in Window by Level for Analyst Selection by type

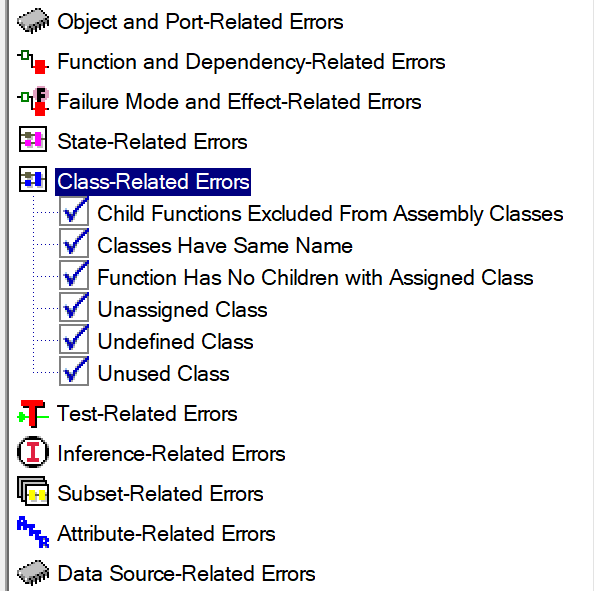

Group by
Category option
Group by category allows the Analyst to select by the categories to be Selected. Each category will open to allow selections as shown to the right for "Class Related Errors"

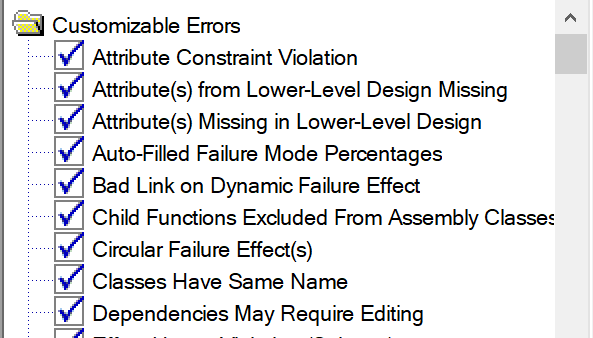

Customizable option
Selects Items to show in Window by Level for Analyst Selection by Customizable Errors.
Minimum level
Error evaluated cutoff
Cutoff to decrease amount of Errors shown. Selection by Type
