When an area of the model is selected using the lasso, the window to the left is displayed allowing the Analyst to select any IO flags within the lasso area.
Method 1

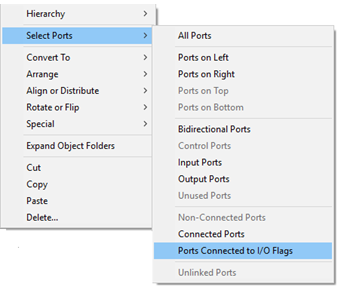

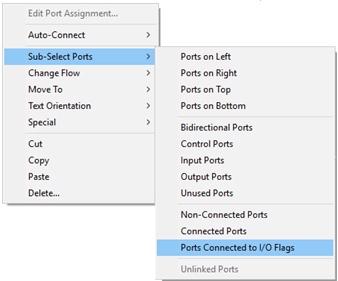

A “Ports Connected to I/O Flags” allows the Select Ports and Sub-Select Ports sections of the object and port right-click
menus (respectively).
Method 2
With all Ports already chosen
Alternative
These new selection methods are particularly useful when you want to line up a series of I/O flags that are connected to an object. First, use one of the new methods to select the ports connected to the I/O flags; then use the “Align Objects by Ports” operation to adjust the positions of the flags.
