Design States Auto-Create Options Method window


Design States Auto-Create Options Method window
1

Combination Evaluation Method

1. Combination Evaluation Method
Specifies the method of combinine object states to create design states:
  • Systematic - systematically creates design states for all valid combinations.
  • Random - randomly creates design state for valid combinations

NOTE:  design state creation stops either when all valid combinations are created or when the specified cutoff is reached.

2

Cutoff Controls

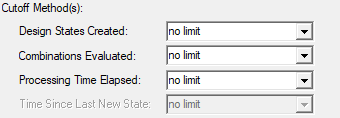

2. Cutoff Controls


Design states can now be generated randomly (rather than systematically). With this ability, the Analyst can now address much larger problems, where a sufficiently rich set of design states is preferable to an exhaustive set. This approach can yield a very large amount of design states on large models.  For this reason Cutoff's can be used to control the number of states created.

Available Selections:
Design States Created
1000 to 1 Million Selection
Combination Evaluated
1000 to 1 Million Selection
Processing Time Elapsed
1 Minute to 2 days

3

Create button

3. Create button
Creates Design states using the inputs selected
4

Cancel button

4. Cancel button
Cancel Setup (Abort)
