Flow Diagram Option views



Feature Description


Flow Diagram Options:

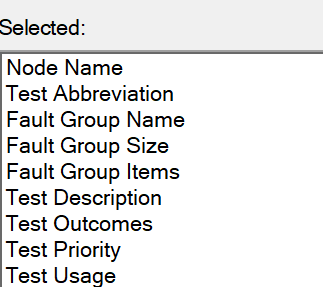

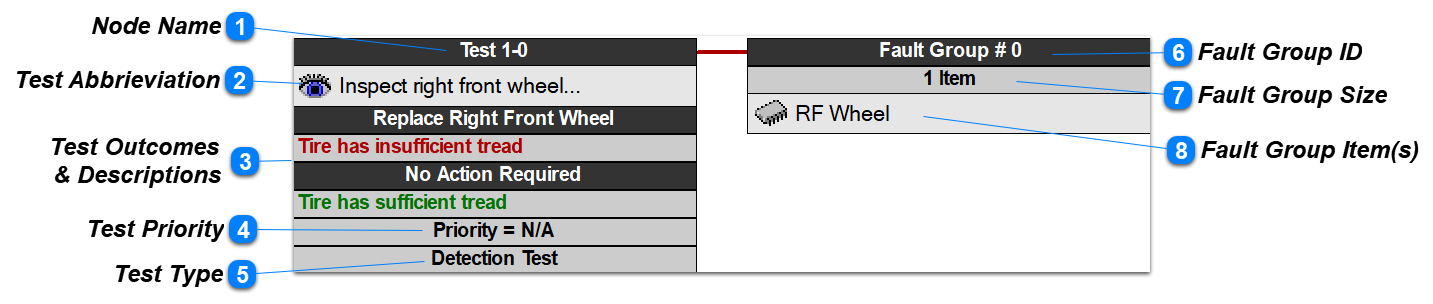

Following is a description of each Selected Flow diagram options shown to the right

Not shown - Explicit inferences and Fault codes, These would also be included in the Detection Column (left column)  if chosen

Flow Diagram Option views
1

Node Name

1. Node Name
Sequence number of the Test Flow - default = "Selected"
2

Test Abbrieviation

2. Test Abbrieviation
Name of the Test - default = "Selected"
3

Test Outcomes

& Descriptions

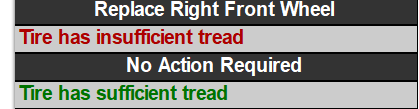

3. Test Outcomes & Descriptions
Test outcomes includesTest Failure Action with its description, Test Pass Action with its description - default = "Not Selected"
4

Test Priority

4. Test Priority
Test Priority - default = "Not Selected"
5

Test Type

5. Test Type
Test Type - default = "Selected"
6

Fault Group ID

6. Fault Group ID
The Fault Group number of this Ambiguity set - default = "Selected"
7

Fault Group Size

7. Fault Group Size
Size of the Ambiguity set - default = "Selected"
8

Fault Group Item(s)

8. Fault Group Item(s)
List of Objects in Fault /Group - default = "Selected"
