Design Statistics: Subsets

|  |  |
Through all Calculated Members

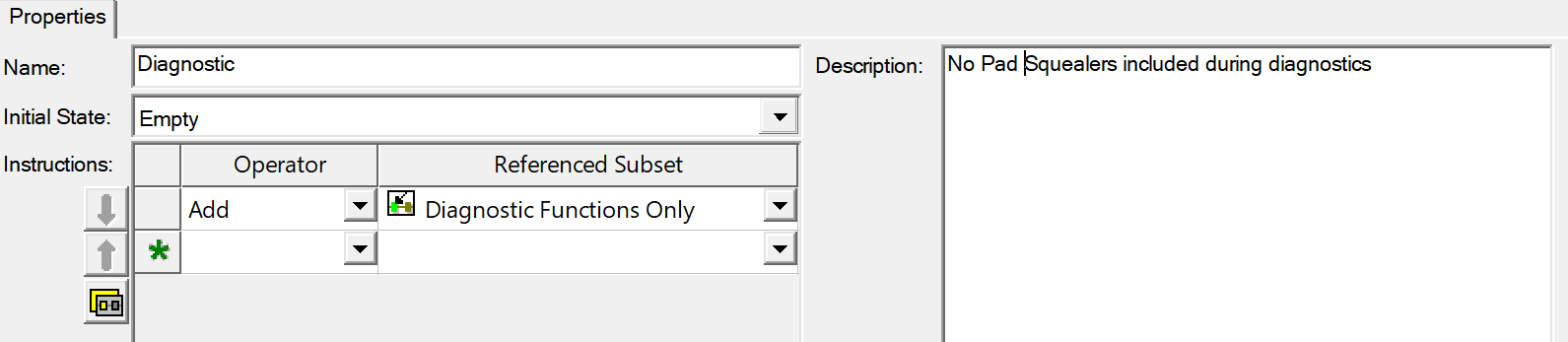

Contest Panel makeup of Combination Diagnostic Subset

Usage: To validate model Subsets prior to generating Operating Modes. Here we have a single Combination Subset named "Diagnostic" which does not include the Squealers. when diagnostics are run using the Diagnostic Operating Mode the results will not include the Squealers

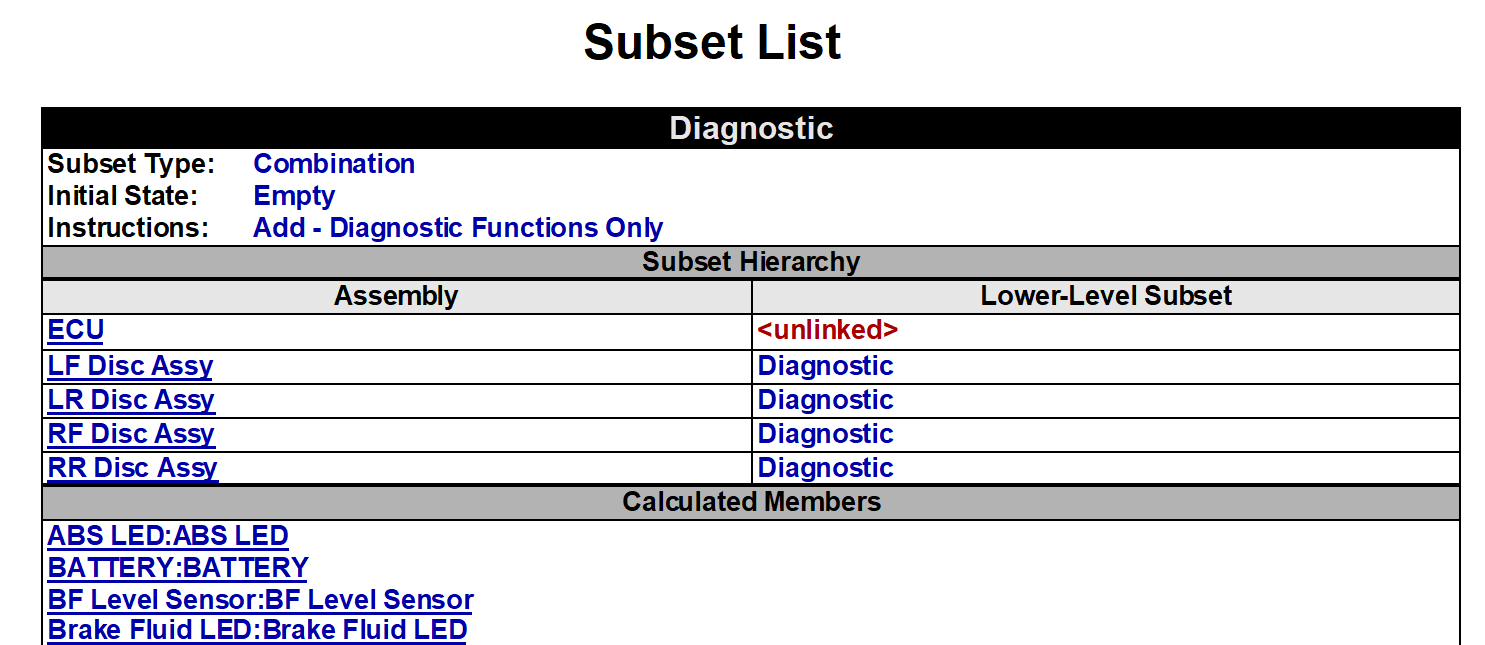

Also we can see that ECU is showing unlinked indicating the need for Hierarchical Subsets to link lower level Subset named "Diagnostic"

See Subsets Overview & Subset How To's 14 links to Subset helps
