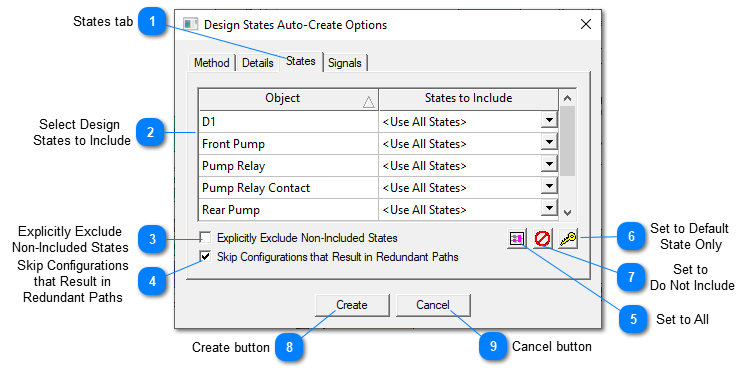

Design States Auto-Create Options States window


Design States Auto-Create Options States window
1

States tab

1. States tab
Select to Select Object States to be used making Design States
2

Select Design

States to Include

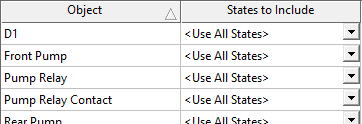

All Objects with Object States will be shown in the Object Column for the Analyst to Select.
2. Select Design States to Include

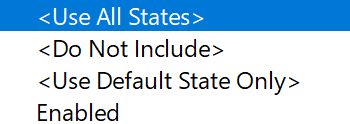

The "States to Include" has the options shown To the right


3

Explicitly Exclude

Non-Included States

3. Explicitly Exclude Non-Included States

4

Skip Configurations

that Result in

Redundant Paths

4. Skip Configurations that Result in Redundant Paths

5

Set to All

5. Set to All
Macro to set all "States to Include" to "Use all States" (Back to Default)
6

Set to Default

State Only

6. Set to Default State Only
When checked only default States will be used to create the Design States

7

Set to

Do Not Include

7. Set to Do Not Include
Macro to set all "States to  "Do Not Include" used to prepare to do special selection

8

Create button

8. Create button
Creat the Design States as setup

9

Cancel button

9. Cancel button
Cancel Setup (Abort)
