The new Fault Template Export capability allows you to export fault template definitions to an XML file that can be imported into another eXpress design (the destination design must of course contain the same items that appear in the exported template definitions).
To Select:

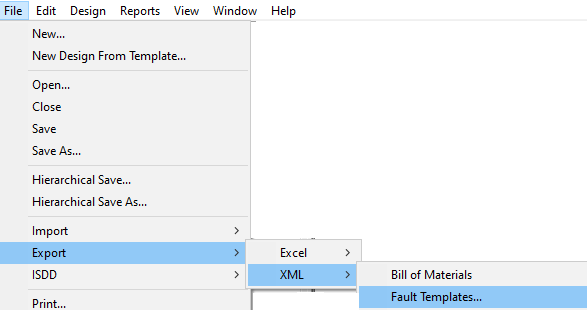

The export can be invoked by selecting “Fault Templates...” from the XML Export menu within the main File menu (shown at left). The following dialog will then appear:
You can specify the status of the templates to be exported (so that, for instance, you don’t export unused or invalid templates) and select which Attributes should be exported for each template. If you have specified a fault code Attribute for fault templates, it will be exported by default.
