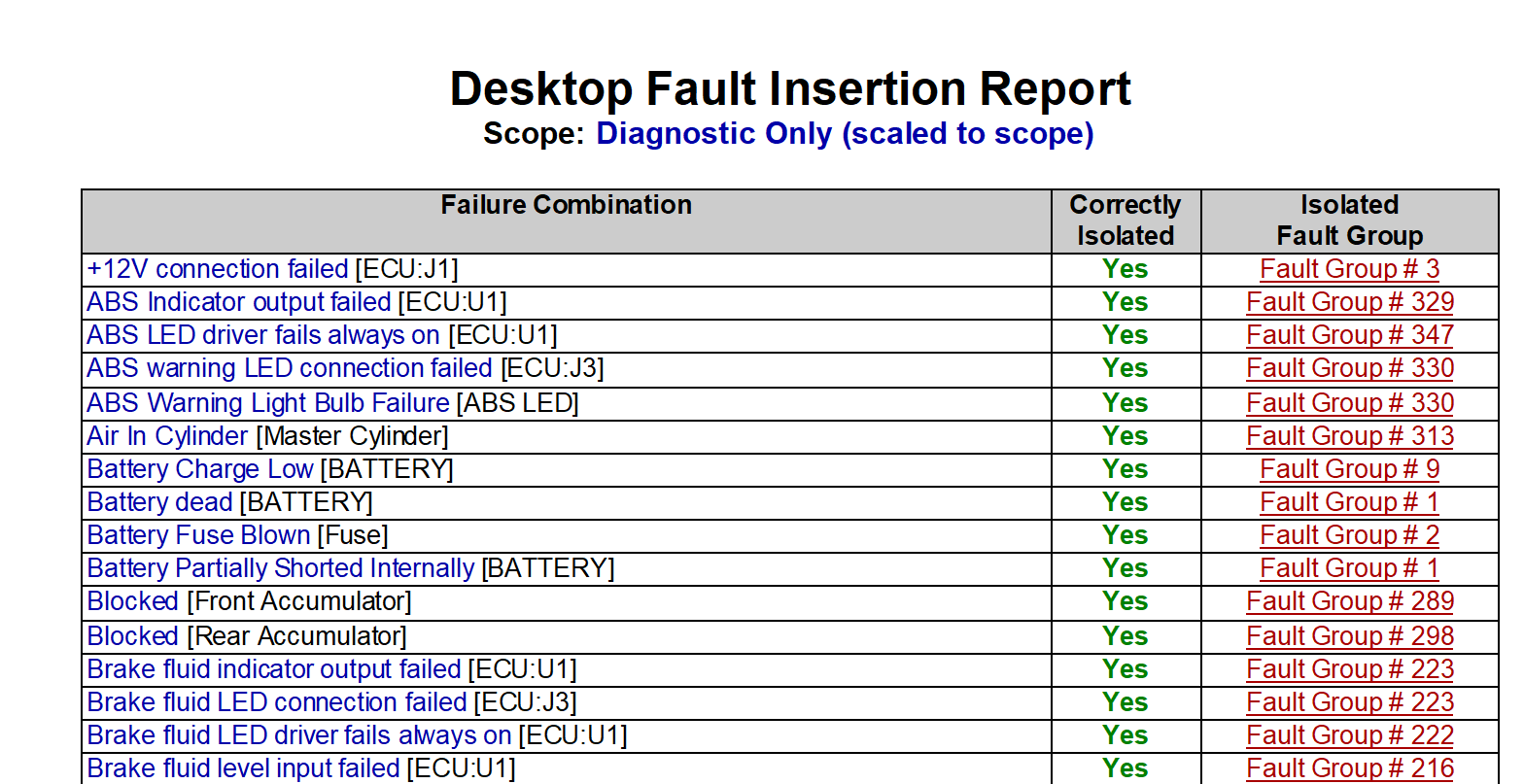

All Failure Combinations resulting in Isolated Fault Groups



Analyst can use Destop Insertion to Pass/fail to show path in flow diagram to each Fault Group. Isolation Fault Group column will be alphabetically sorted in the order chosen in the setup. (Failure modes when designed, Functions Alway, Based on Settings in Study)



Also can be shown with or without interference when interference is not turned off in diagnostic Anal;ysis
