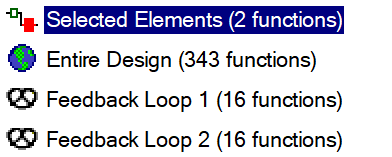

This ICON opens the window shown below with selections in the "Browse" window for each feedback loop in the model. (Will vary with model)
If an object is selected when this ICON is selected the window will only show the feed back loops that contain that object.
Tracing through a Feedback Loop
| | |

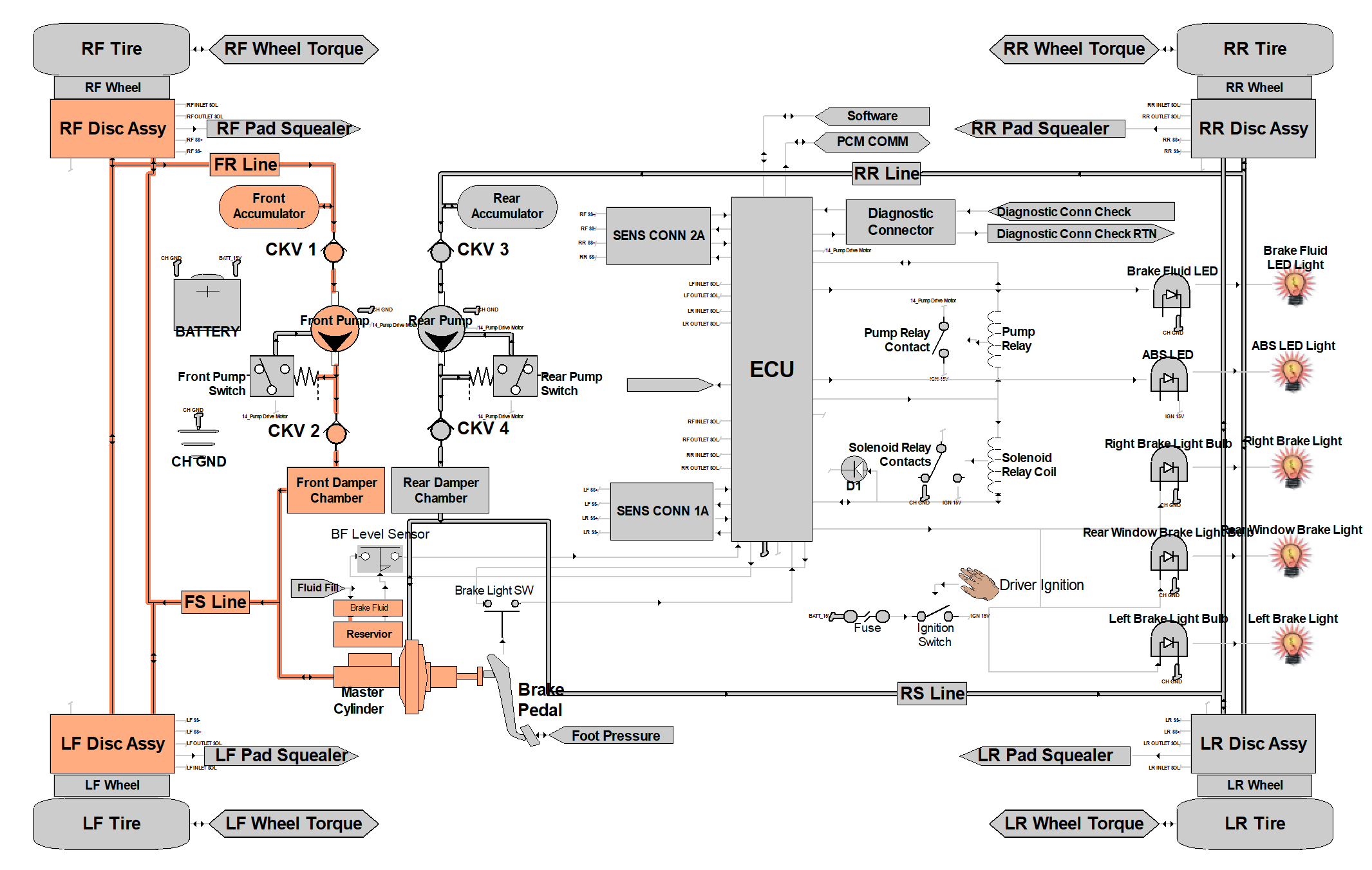

Here the Front Pump was selectedd

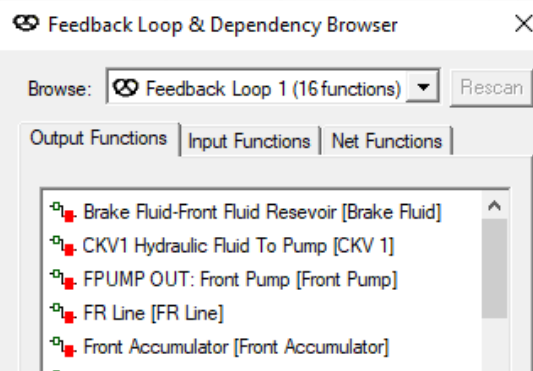

If your model contains feedback loops, then (if no objects, ports or nets are selected when you invoke the browser) the first loop will be displayed by default. The three panels on the dialog will list all output, input and net functions that are involved in the loop. Also, objects and nets associated with these functions will appear coral-colored in the main design window (with all other elements remaining gray).

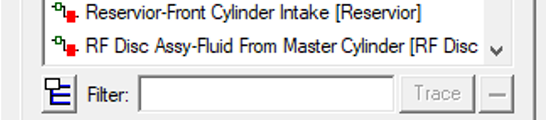

Note: The filter can be used to down select desired feedback loops (use for large models)
When viewing functions for a feedback loop, the function highlighted on the active panel of the browser will be colored a slightly darker shade of coral to aid identification. It will also be centered in the design window (unless, as in the following example, the centering of selected elements has been disabled on the Advanced Editing Toolbar).
