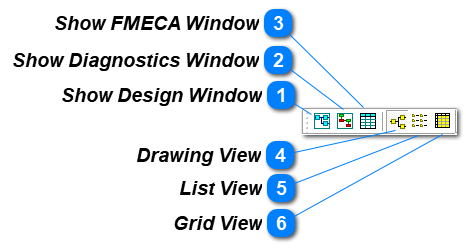

The View toolbar (depicted below) contains icons that can be used to invoke the different View and Show commands. View commands control how a design document is presented in the main design window, whereas the Show commands can be used to create and switch between multiple document files.
This Toolbar is used to Select 3 different Windows (Design, Diagnostics and FMECA) & 3 different Views of the Design Window. There is an alternative method of selecting the 3 windows using the Link shown below:
NOTE: If multiple models are open in eXpress use the Window Pull-Down Menu to select the correct model. Then the above commands will associate with that model.
Note: Whereas all six icons are enabled when the active document is an eXpress design (.exd) file, only the three Show icons are enabled when a Diagnostic Study or FMECA Study document is active.
