Diagnostic Context Panel Setup Overview

Feature Description

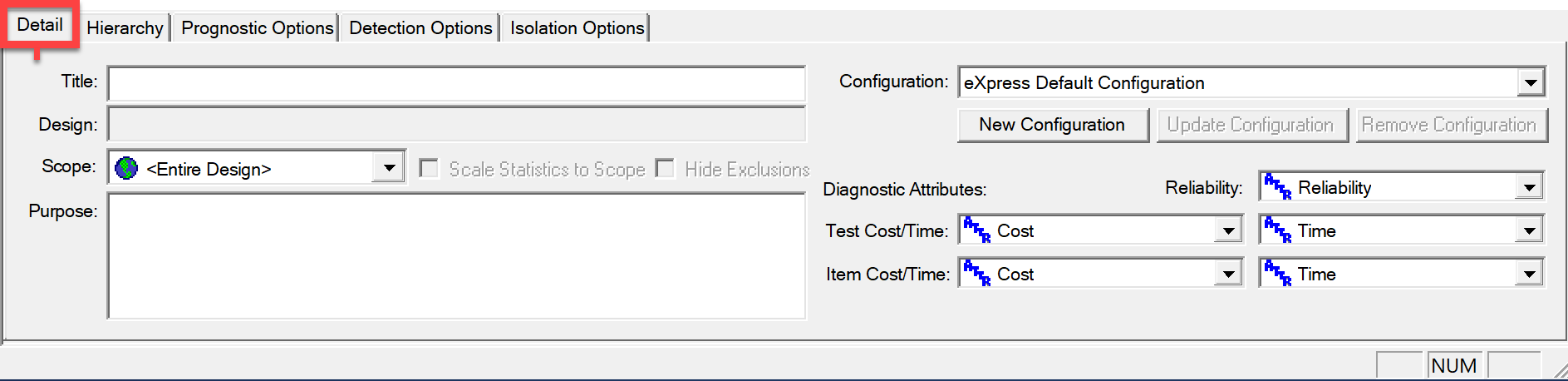

Diagnostic Context Panel Detail Tab view

Used to Setup Details of a specific diagnostic run.

Contest Detail Tab Setups

- Basic setups to Aid the Analyst in managing the diagnostics

Function	Setup
Title	Name of the Diagnostic - Normally model or segment name with Diagnostic Run #
Design	Grey - not used
Scope	Operating mode Selection panel (Default Entire Design)
Purpose	Analyst Description Field (Optional)
Configuration	Stored Setup so Analyst does not have repeat setups on mutilple runs
Diagnostic Attributes	Cost, time, Reliabilty setups

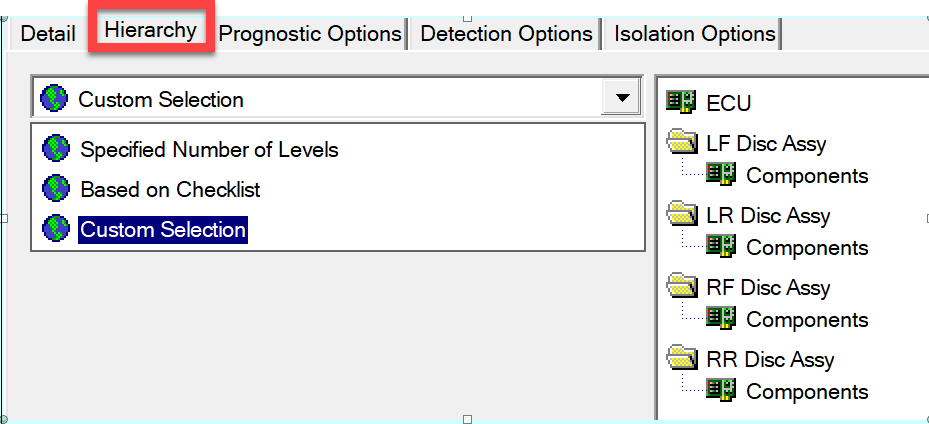

Hierachy Tab Setups

- Depth of Analysis to set hierarchy level for diagnostic.

Should be set to replacement level. Here the ECU is the replacement item so its components are not selected. To select a lower level use the left hand mouse button on the ICON to open or close the level.

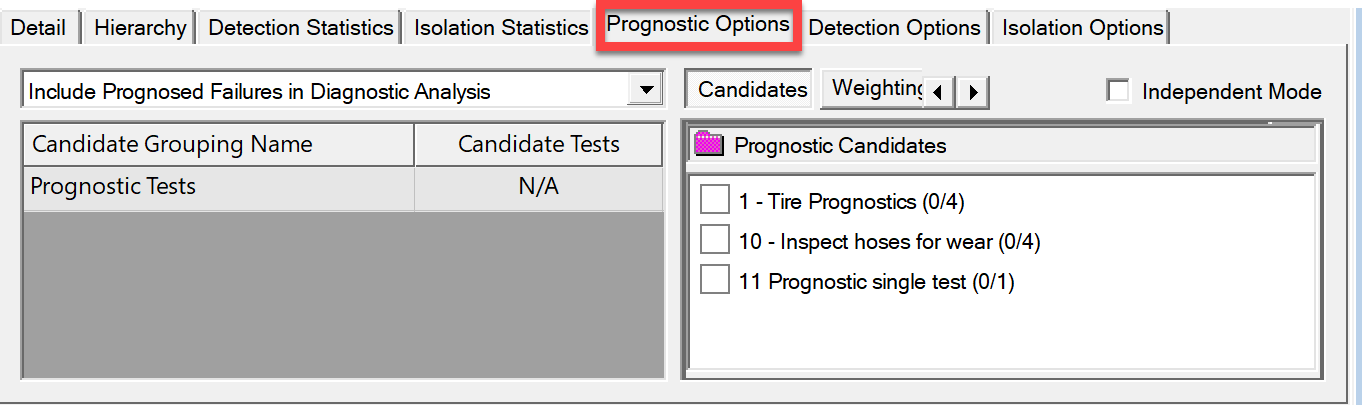

Prognostic Options Tab Setup

Use to select desired Prognostic tests - see Prognostics Setup for algorithmns

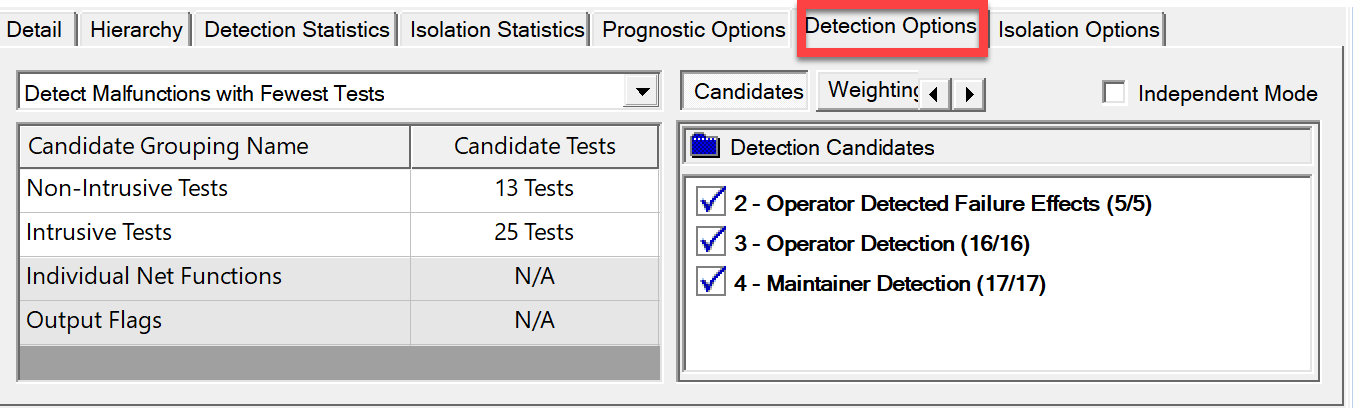

Use to select desired Detection tests - see Detection Algorithms for algorithmns

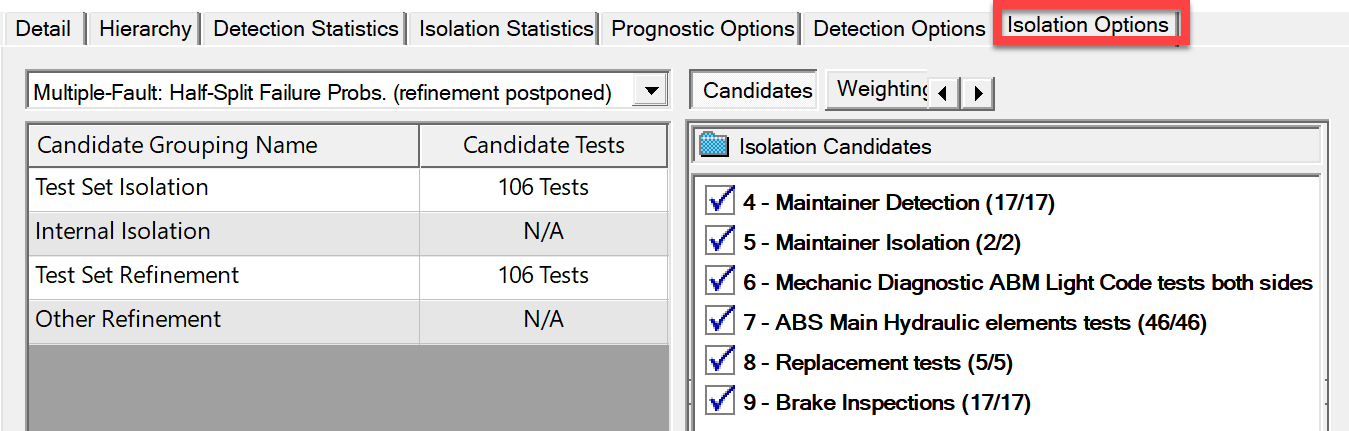

Use to select desired Isolation tests - see Isolation Algorithms for algorithmns
