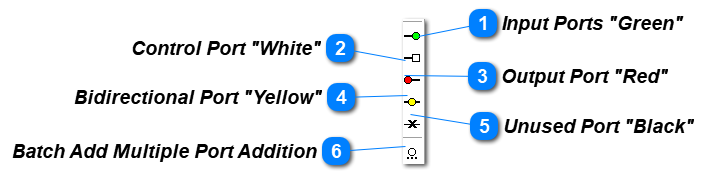

Port type designation Toolbar



Port type designation Toolbar
1

Input Ports "Green"

1. Input Ports "Green"
Add Input port to selected Object. If port is already selected, chnage it's type to input
2

Control Port "White"

2. Control Port "White"
Add Control port to selected Object. If port is already selected, chnage it's type to Control
3

Output Port "Red"

3. Output Port "Red"
Add Output port to selected Object. If port is already selected, chnage it's type to Output
4

Bidirectional Port "Yellow"

4. Bidirectional Port "Yellow"
Add Bidirectional port to selected Object. If port is already selected, chnage it's type to Bidirectional
5

Unused Port "Black"

5. Unused Port "Black"
Add Unused port to selected Object. If port is already selected, chnage it's type to unused
6

Batch Add Multiple Port Addition

6. Batch Add Multiple Port Addition
Batch Add Ports Window
