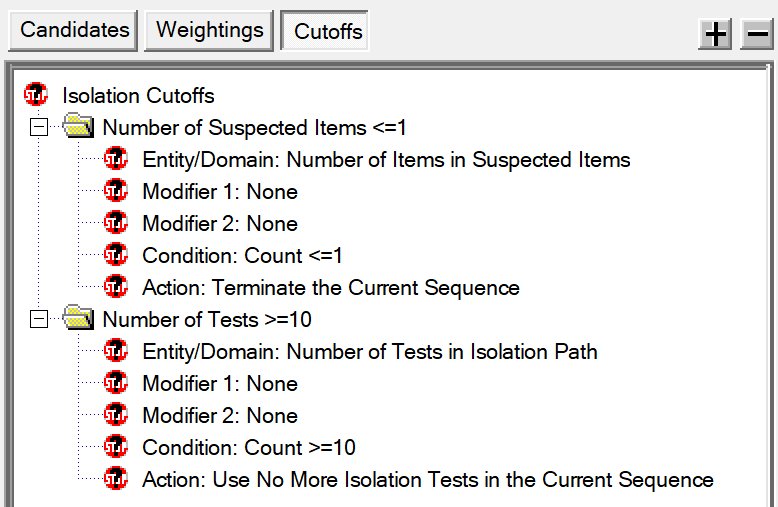

This is the default Cuttoff settings for Cutoff for Common Half-Split (Max. Depth =10)



Here we see the "Number of Tests" set to no greater than 10. This cutsoff the isolation of each detection test to 10 failed tests before the isolation goes to the next detection ambiguity to break it down. This restricts the flow diagram (Failed tests) to 10 going to the right of the detection test.



This algorithm is very important in the early usage of diagnostics to breakdown the testing sequence of a model.



It is recommended that the analyst use this algorithm if the diagnostic is taking a long time to breakdown the isolation of the model. (Long eXpress Isolation sequences indicate insufficient tests to do the isolation well.)



Other Cutoffs Variations are the same as Common cause and will not be repeated here.
